AR 931-100

Back
Technical Specifications

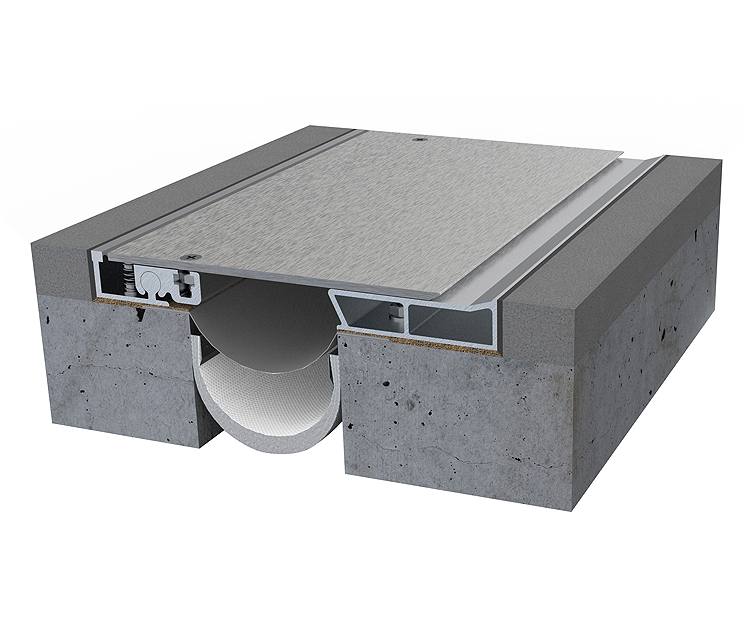

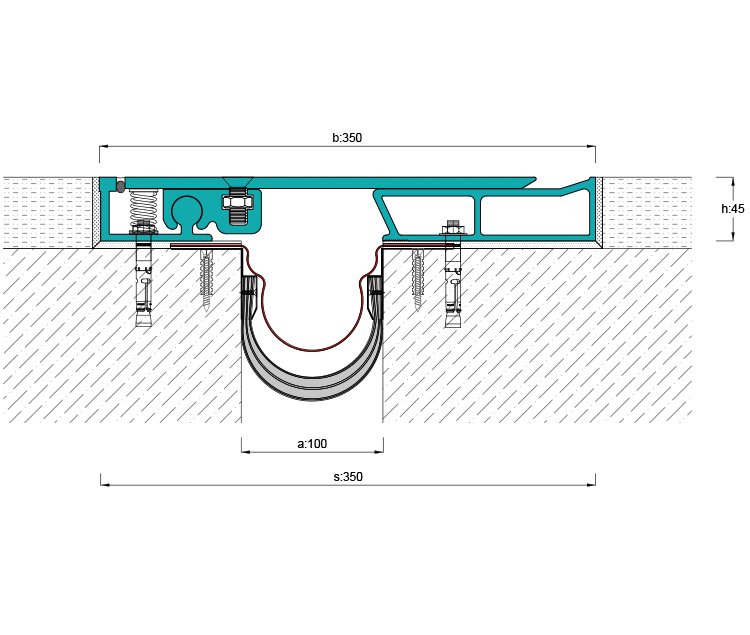

Flush Mounted Expansion Joint Profile with aluminium top surface and high movement capacity. One side Hinged

Width: 100 mm
Height-Load Capacity: 45 mm | Resistant to 30 tones vehicle 6.5 tones forklift load
Movement Capacity: +/-50 mm
Profile Length: 2 mt
EXAMPLE APPLICATIONS
