Floor Profiles for Under Finishing

AR 851-100

Technical Specifications

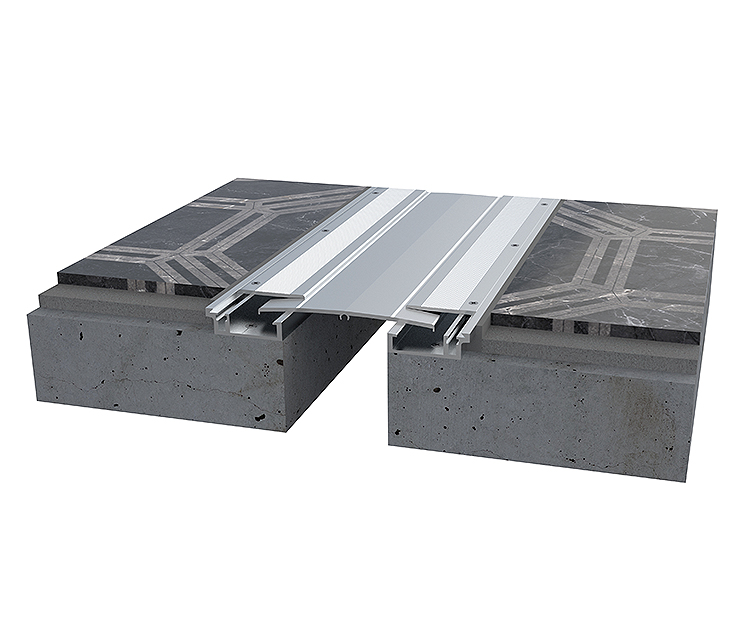

Flush Mounted Seismic Expansion Joint Floor Profile resistant to light vehicle load and has high movement capacity with aluminium surface.

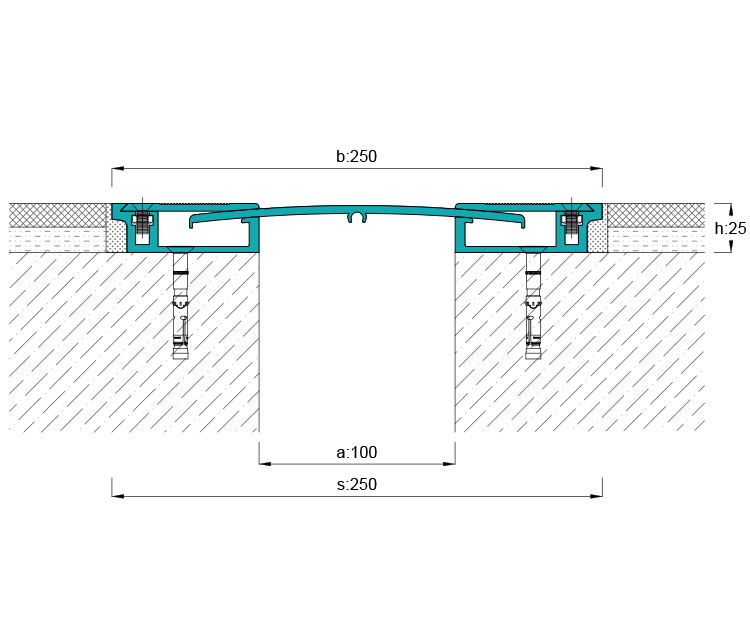

Width:	100 mm
Height-Load Capacity:	25 mm \| Resistant to 2,5 tones vehicle load.
Movement Capacity:	+50 /-30 mm
Profile Length:	3 lm

EXAMPLE APPLICATIONS
