AR 902-100

Back
Technical Specifications

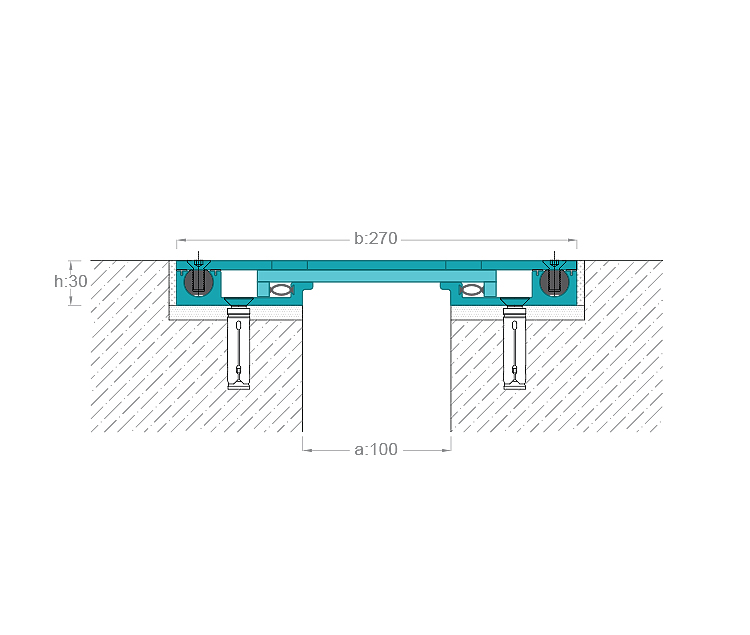

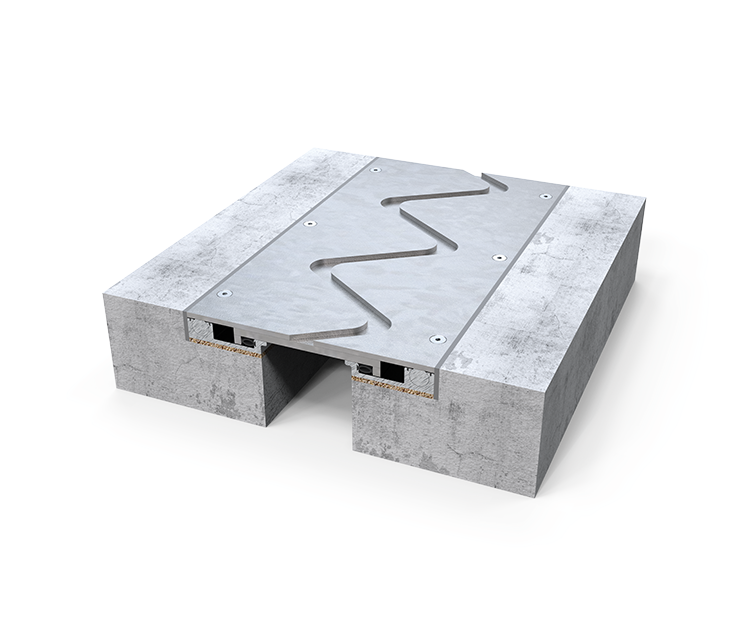

Flush Mounted Expansion Joint profile with aluminium reinforcement at below,galvanized steel middle plate, galvanized steel top surface and resistant to intense forklift load. Suitable for Industrial Structures

Width:

100 mm
Height-Load Capacity: 30 mm | Resistant to 60 tones vehicle and 9 tones forklift load.
Movement Capacity: +/-25 mm
Profile Length: 2 mt

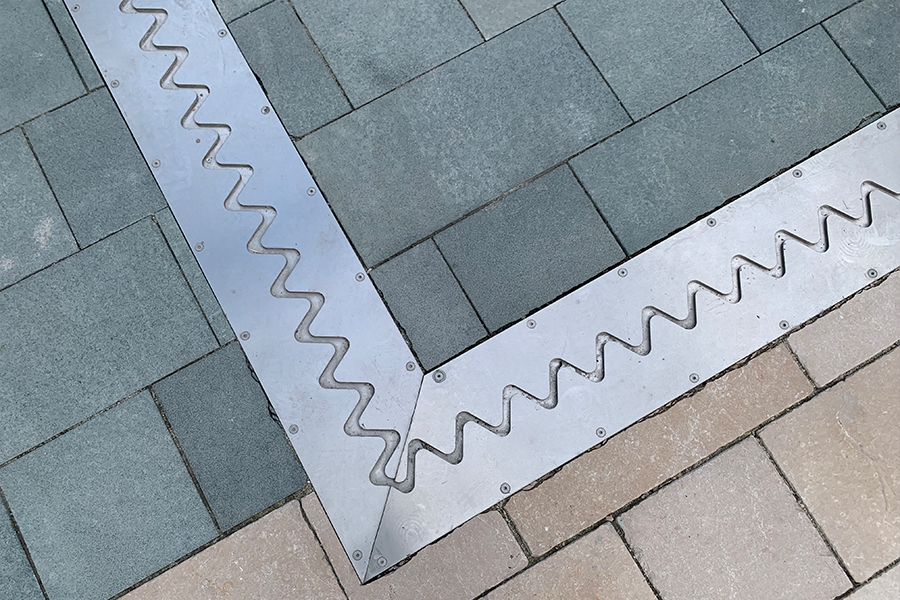

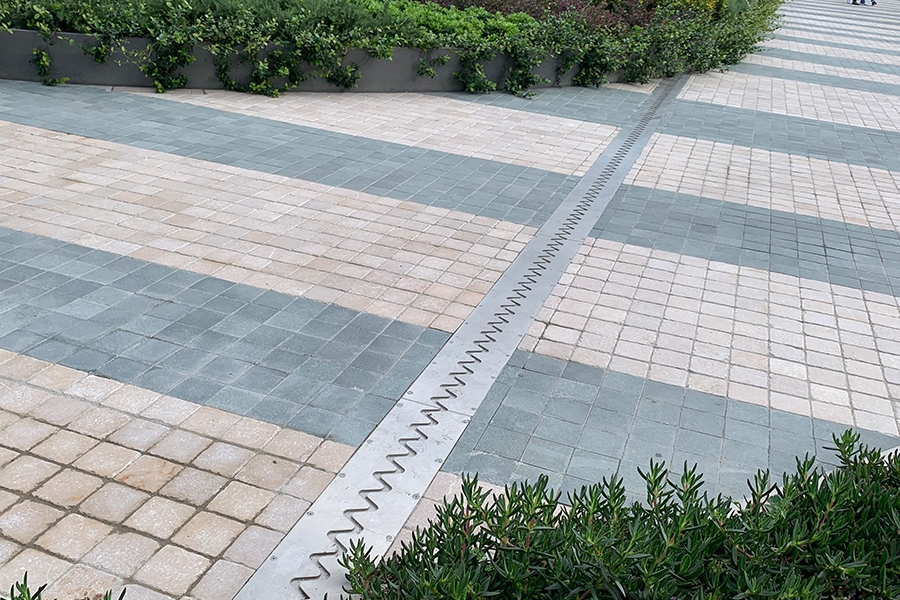

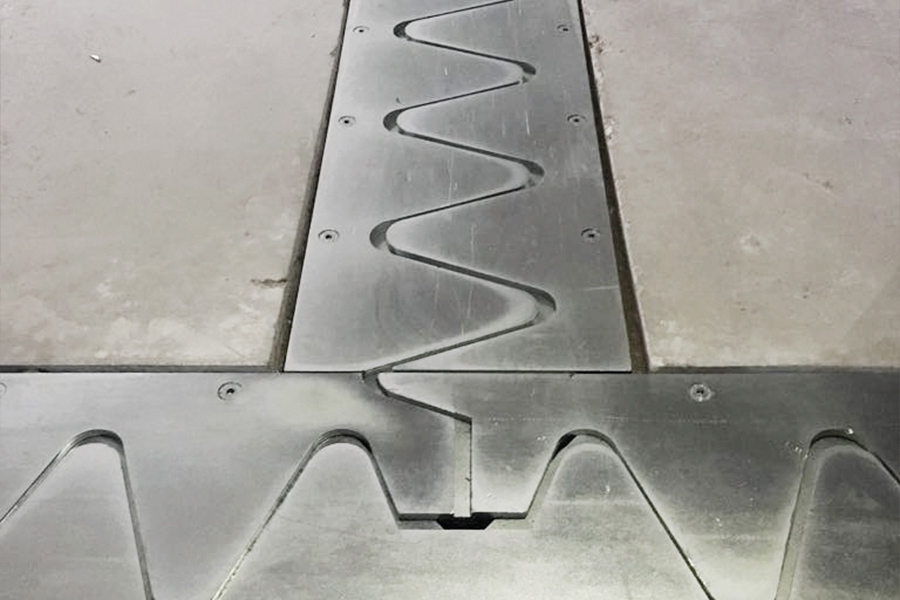

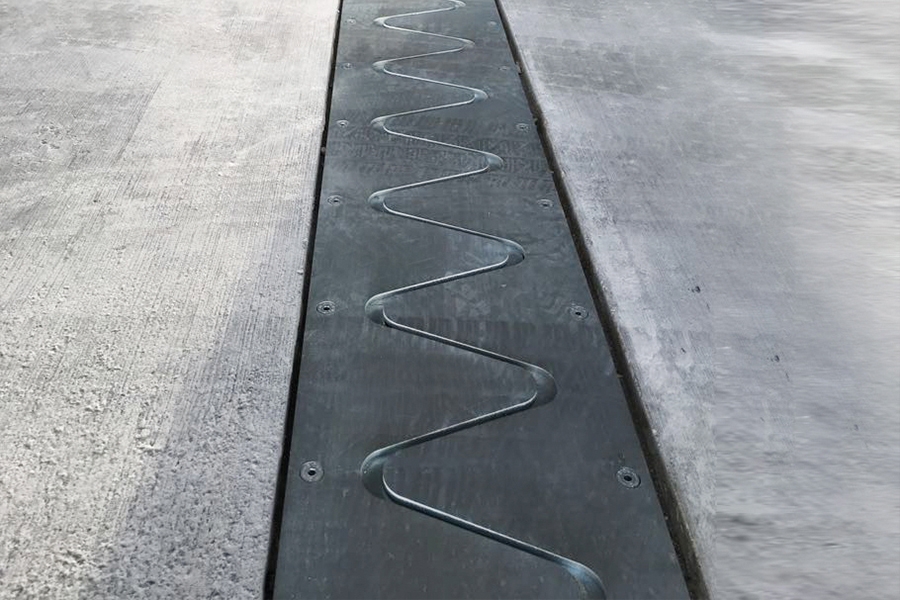

EXAMPLE APPLICATIONS
