Floor Profiles for Under Finishing

AR 802-100

Back
Technical Specifications

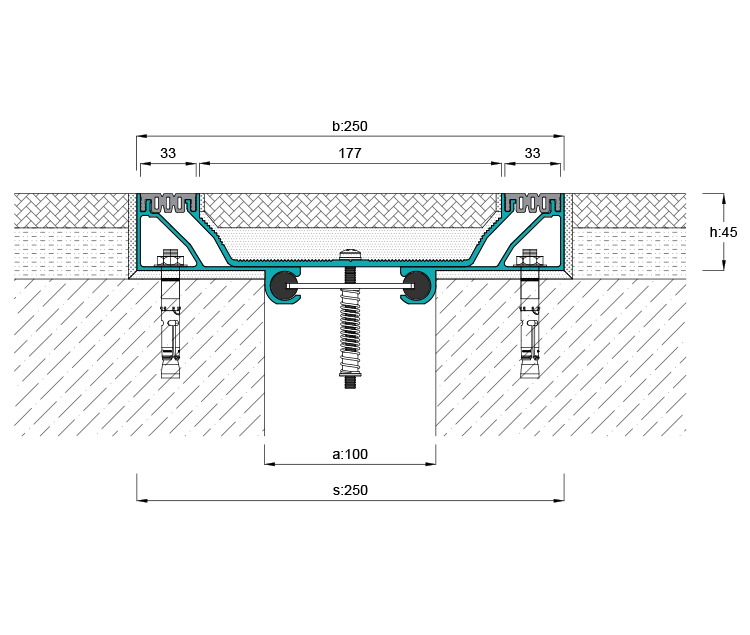

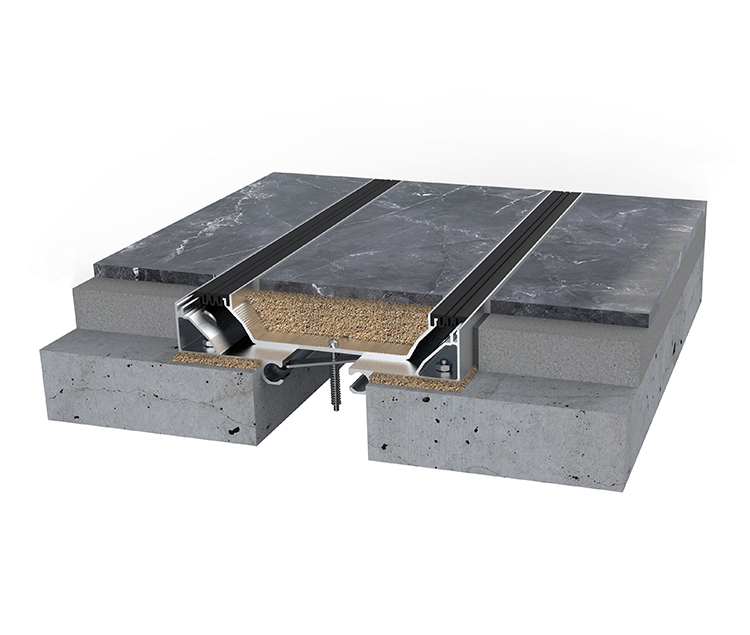

Flush Mounted Seismic Expansion Joint Floor Profile for 10cm gap. Water isolation, fire barriers are optional. It is suitable for granite, marble or ceramic on the floor.

Width: 100 mm
Height-Load Capacity: 45 mm | Resistant Pedestrian Load Cleaning Machines.
Movement Capacity: +/- 50 mm.
Profile Height:  3 lm
EXAMPLE APPLICATIONS
