AR 803-100

Back

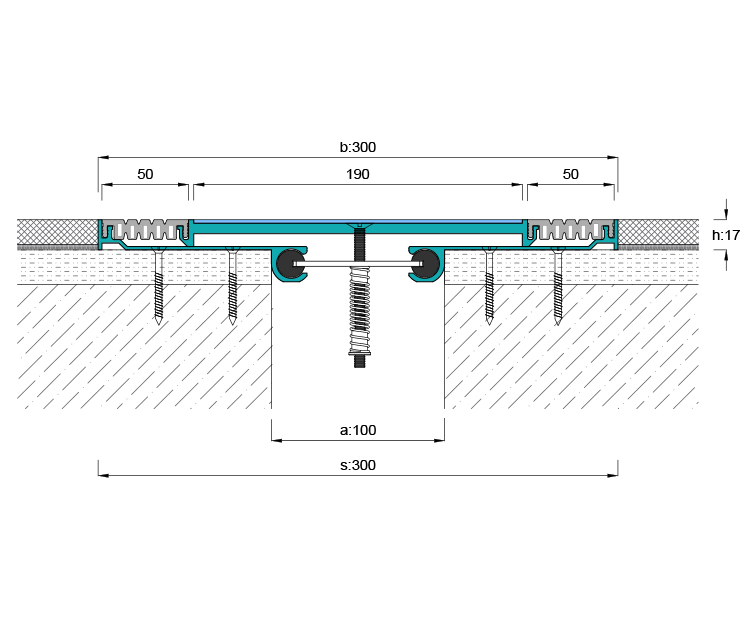

Technical Specifications

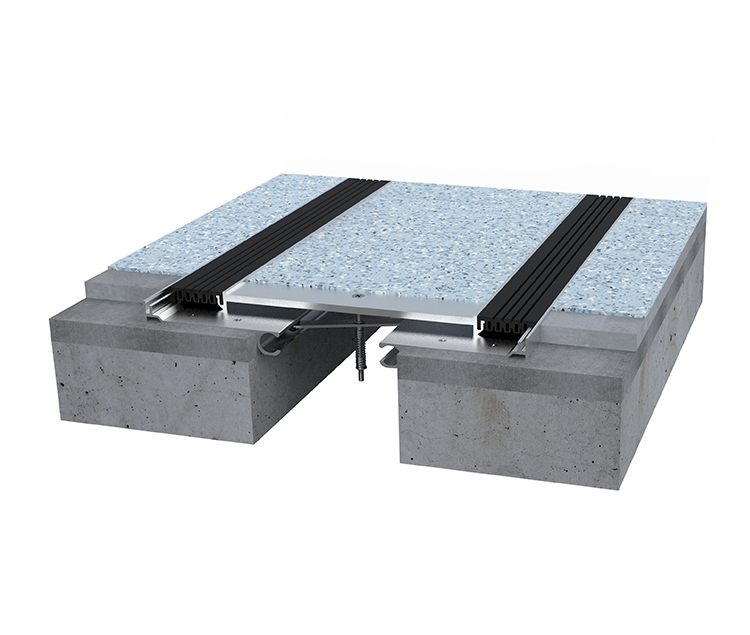

Flush Mounted Seismic Expansion Joint Floor Profile suitable for thin floor finishings and especially for PVC or epoxy floorings. It has high movement capacity and wide TPE inserts.

Width: 100 mm
Height-Load Capacity: 17 mm | Resistant to Pedestrian and Cleaning Machine Load.
Movement Capacity: +/- 50 mm.
Profile Length:  3mt.
EXAMPLE APPLICATIONS
