ARH 22

Back
Technical Specifications

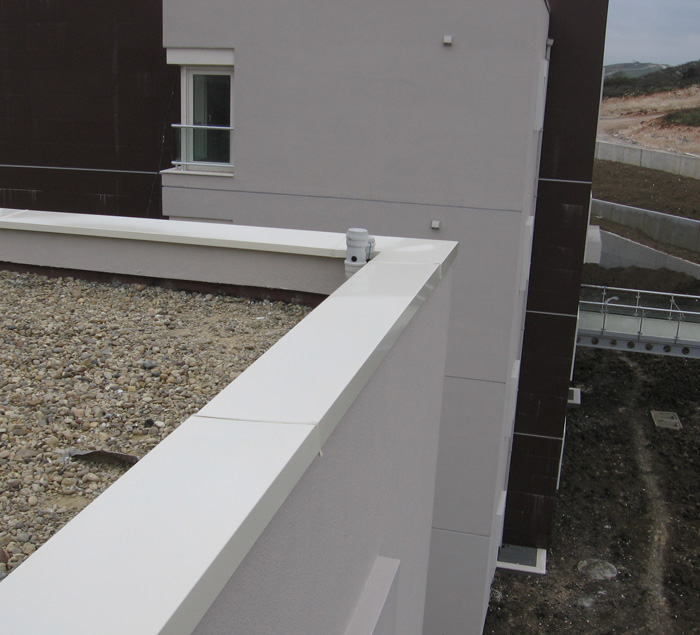

A water-tight structure with accessories
Correct  thicknesses and assembly to strength wind loads
Compatibility with thermal expansion
Color or anodized solutions
The inward slope can be given to the structure

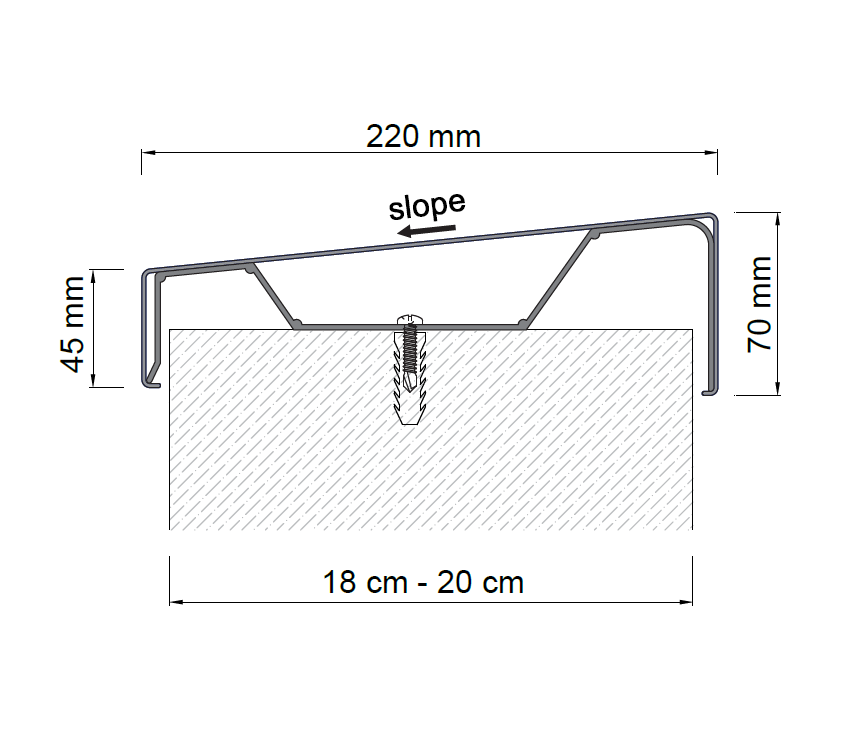

70 mm width special alloy aluminum installation apparatus  fixed to paraphets every  50 cm. Anodized  and powder coated aluminum copping are mounted through clips. Custom manufacturing is done in different sizes and different widths
Accesories
The special finishing parts for bottom of the wall
The special finishing parts for bottom of the wall
Internal and external corner parts
Internal and external corner parts
Additional Merge Elements (H Profile)
Additional Merge Elements (H Profile)
