Aluminum Coping Series

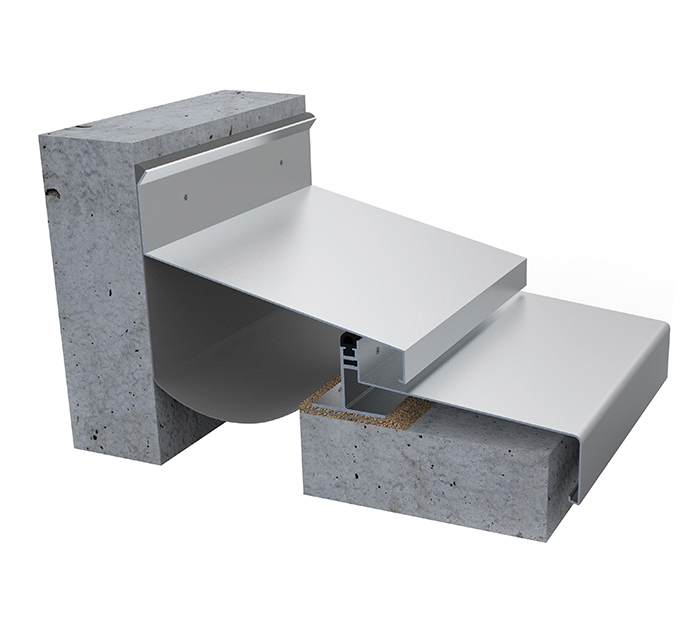

AR 606 Corner Detail for Expansion Joints on Roof

Back
Technical Specifications
These are parapet type terrace expansion joint corner profiles suitable for different parapet dimensions and to make it waterproof, thermoplastic H profiles should be used at the joints.

Product Code
b (parapet width) cm
a (expansion joint gap) cm
AR606-050K
15 cm 5 cm
AR606-051K
20 cm
5 cm
AR606-052K 25 cm
5 cm
AR606-100K
15 cm 10 cm
AR606-101K
20 cm
10 cm
AR606-102K 25 cm
10 cm
AR606-150K
15 cm
15 cm
AR606-151K
20 cm
15 cm
AR606-152K 25 cm
15 cm
AR606-200K 15 cm
20 cm
AR606-201K 20 cm
20 cm
AR606-202K
25 cm
20 cm

AR606-250K

15 cm
25 cm
AR606-251K
20 cm
25 cm
AR606-252K 25 cm
25 cm

AR606-300K

15 cm
30 cm
AR606-301K 20 cm
30 cm
AR606-302K
25 cm
30 cm
