AR 605 Serisi series Expansion joints Detail

Back
Technical Specifications

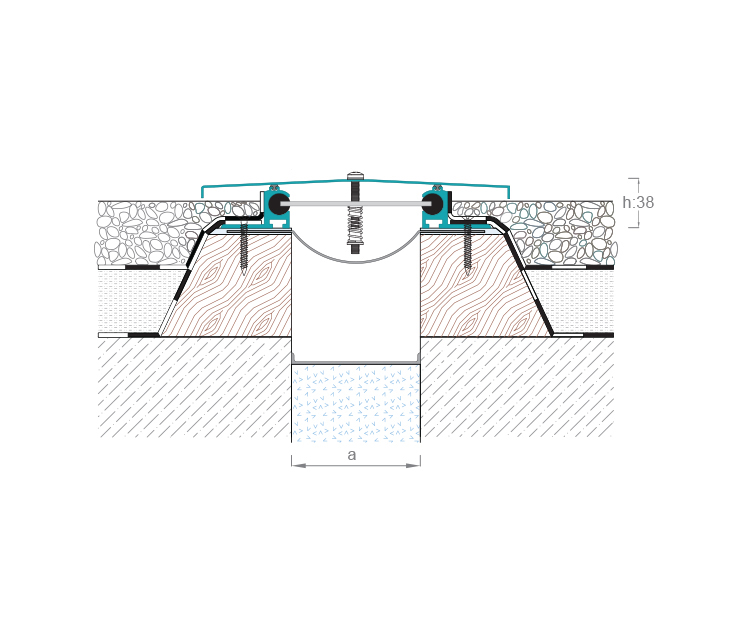

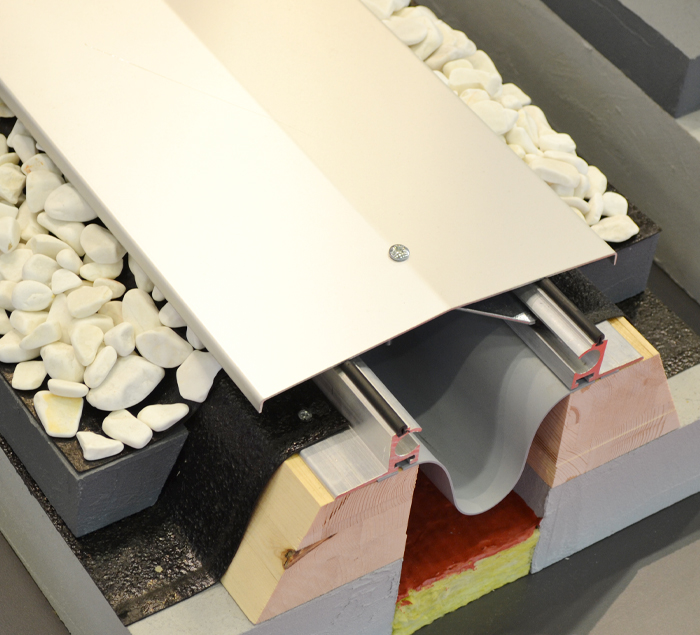

These are parapet type terrace expansion joint profiles applied for protection of dilatation insulation in the application of outdoor terrace roof. Applied with heel concrete or bitumen embured. To make it waterproof, thermoplastic H profiles should be used at the joints.

                                            Product Code
 a (Expansion Joint Gap) cm
                                            AR605-050
5 cm
                                            AR605-100 10 cm
                                            AR605-150
15 cm
                                            AR605-200
20 cm
                                            AR605-250
25 cm
                                            AR605-300
 30 cm

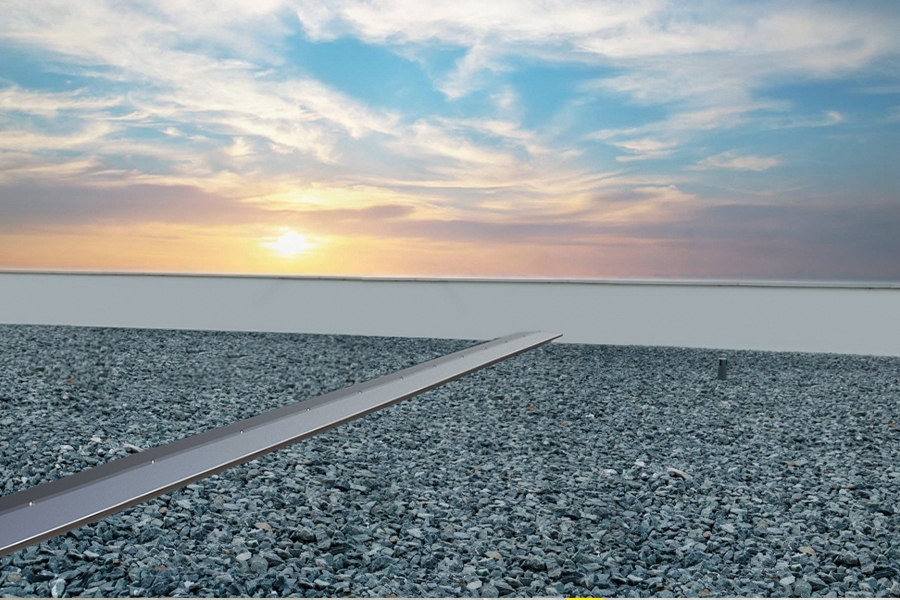

EXAMPLE APPLICATIONS
