Aluminum Coping Series

AR606 series Expansion joints Detail for Roof & Coping

Back
Technical Specifications

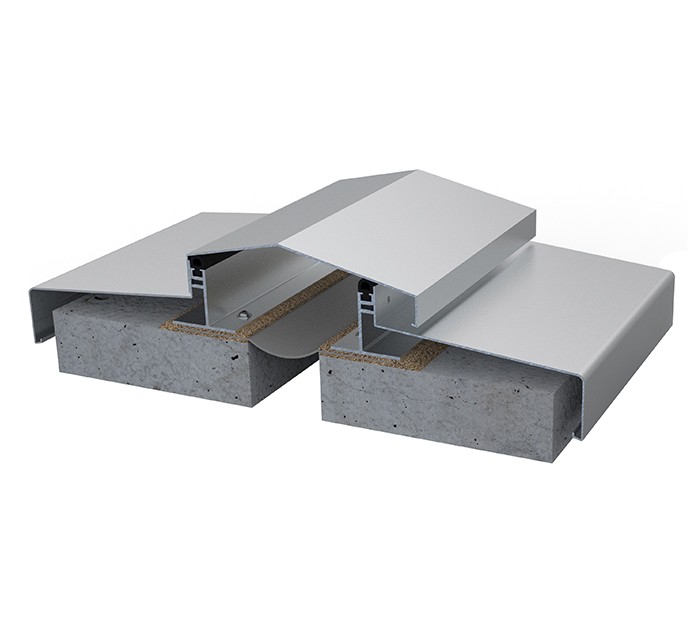

These are parapet type terrace expansion joint profiles suitable for different parapet dimensions and to make it waterproof, thermoplastic H profiles should be used at the joints.

Product Code b (parapet width) cm
a (expansion joint gap) cm
AR606-050
15 cm 5 cm
AR606-051
20 cm
5 cm
AR606-052 25 cm
5 cm
AR606-100
15 cm 10 cm
AR606-101
20 cm
10 cm
AR606-102 25 cm
10 cm
AR606-150
15 cm
15 cm
AR606-151
20 cm
15 cm
AR606-152 25 cm
15 cm
AR606-200 15 cm
20 cm
AR606-201 20 cm
20 cm
AR606-202
25 cm
20 cm

AR606-250

15 cm
25 cm
AR606-251
20 cm
25 cm
AR606-252 25 cm
25 cm

AR606-300

15 cm
30 cm
AR606-301 20 cm
30 cm
AR606-302
25 cm
30 cm
