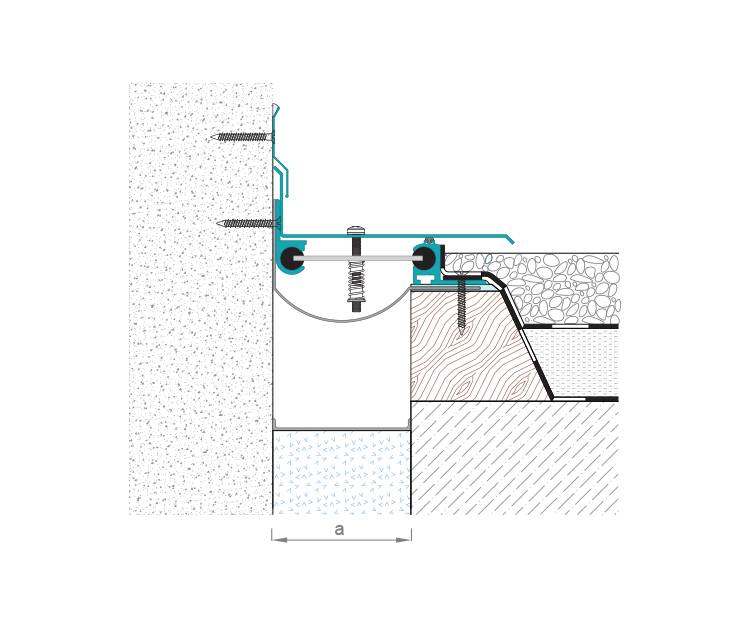

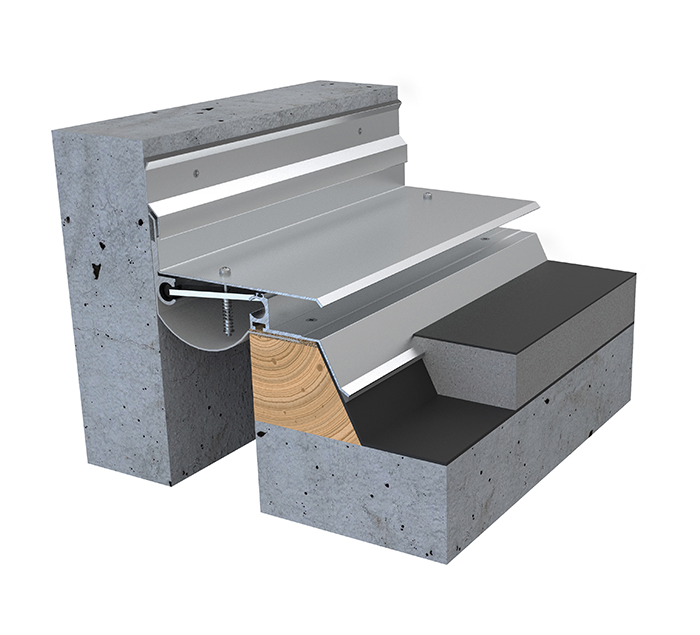

AR 605 Series Corner Expansion Joint Detail

Back
Technical Specifications
These are parapet type terrace expansion joint corner profiles applied for protection of dilatation insulation in the application of outdoor terrace roof. Applied with heel concrete or bitumen embured. To make it waterproof, thermoplastic H profiles should be used at the joints.
                                            Product Code a (Expansion Joint Gap) cm
                                            AR605-050K
5 cm
                                            AR605-100K 10 cm
                                            AR605-150K
15 cm
                                            AR605-200K
20 cm
                                            AR605-250K
25 cm
                                            AR605-300K
30 cm
