AR 932-200

Back
Technical Specifications

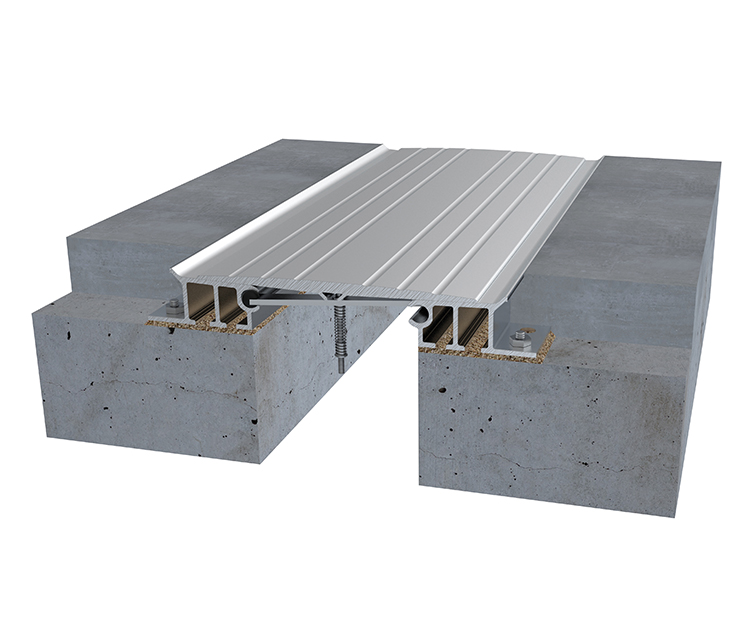

Flush Mounted Seismic Expansion Joint Floor Profile with three dimension movement capacity and wide aluminium surface.

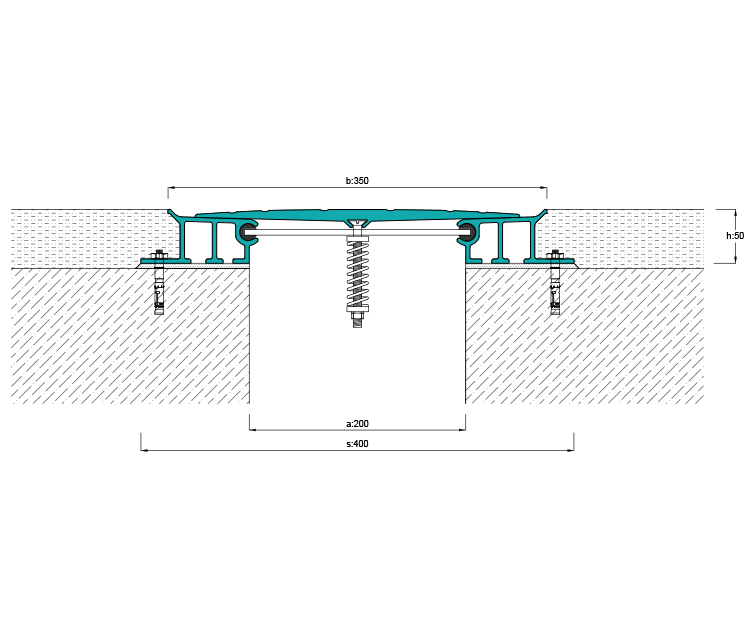

Width: 200 mm
Height-Load Capacity: 50 mm |Resistant to 9 tones vehicle load
Movement Capacity: +/-100 mm
Profile Length: 3 mt

EXAMPLE APPLICATIONS
