AR 813-200

Back
Technical Specifications

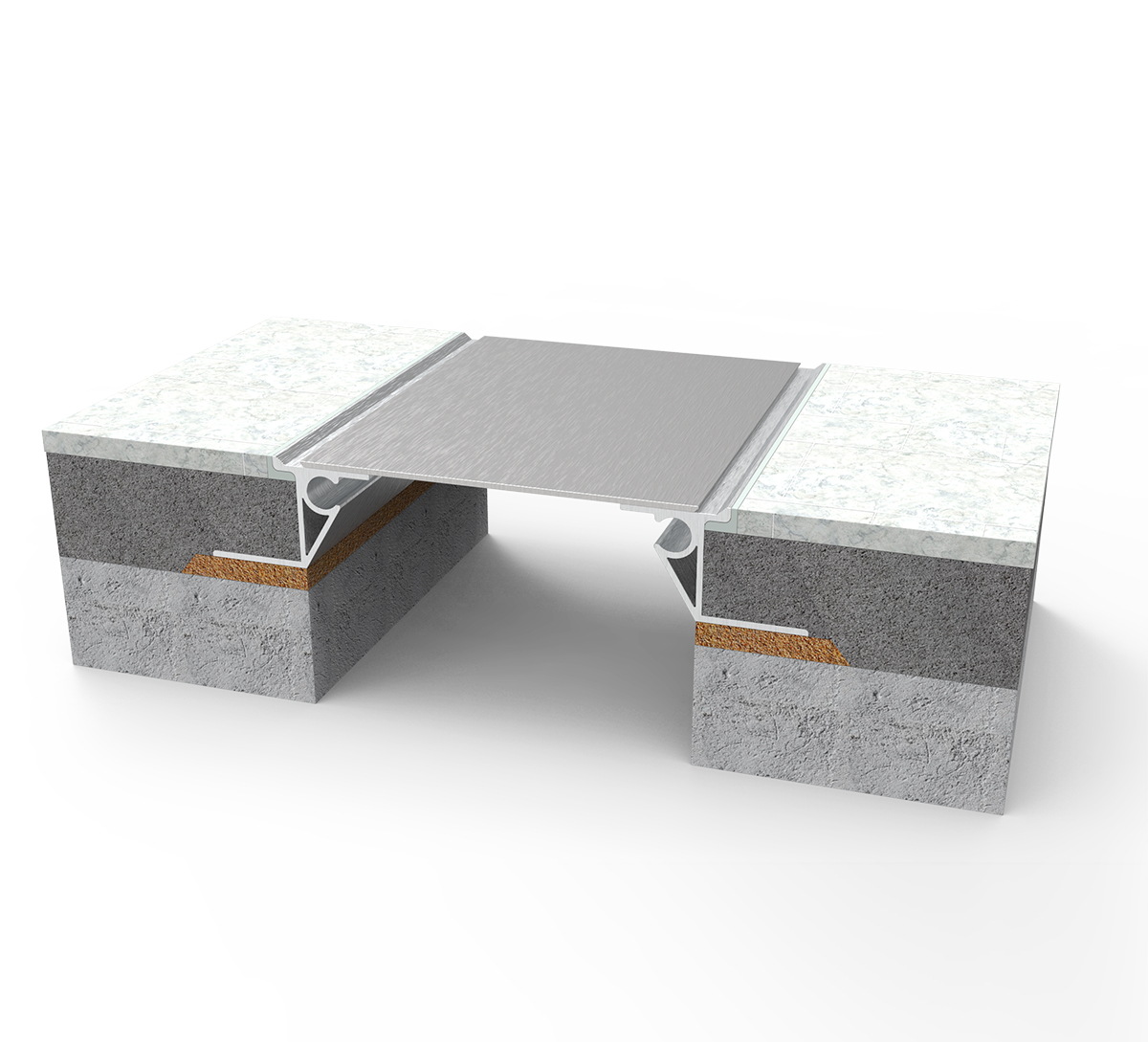

Flush Mounted Expansion Joint Floor Profiles suitable for Shopping Malls, Metro Stations, Food or Pharmaceutical Facility with the requirement such as high movement capacity, abrasion resistance and chemical material resistance. It has stainless steel top caps.

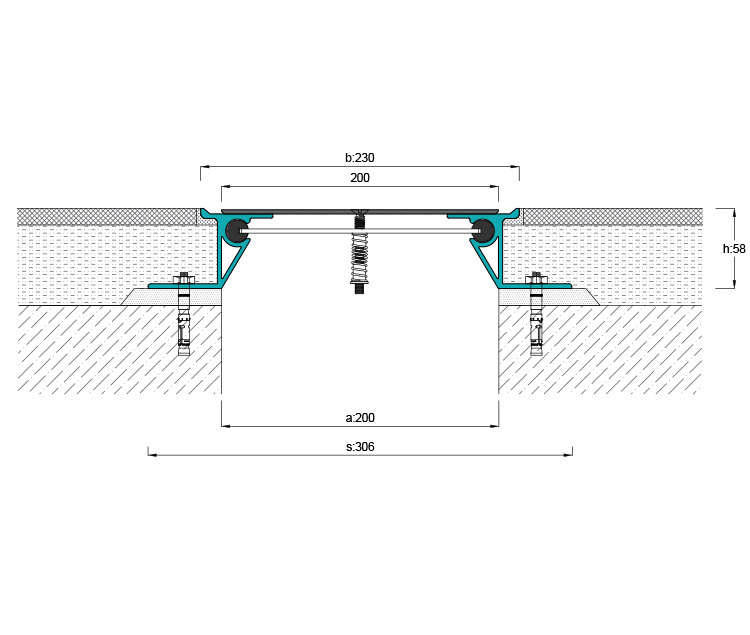

Width: 200 mm

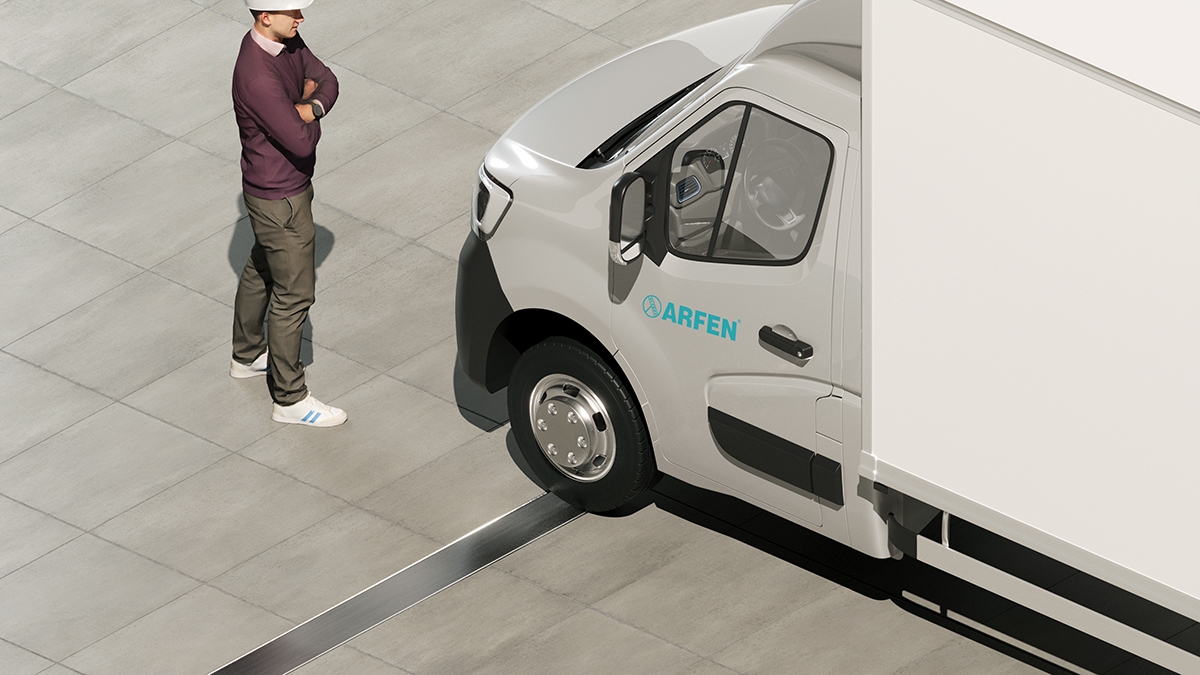

Depth-Load Capacity: 58 mm | Resistant to 3,5 tones vehicle load
Movement Capacity: +60/-100mm
Profile Length: 3 mt

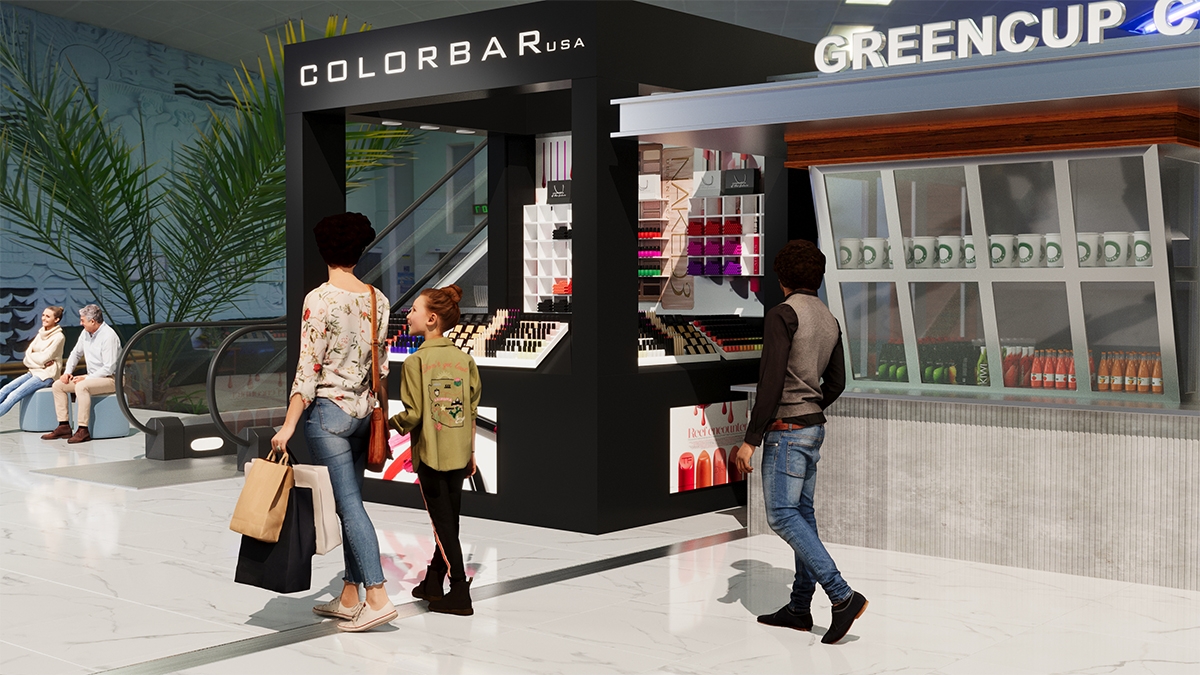

EXAMPLE APPLICATIONS
