AR 901-200

Back
Technical Specifications

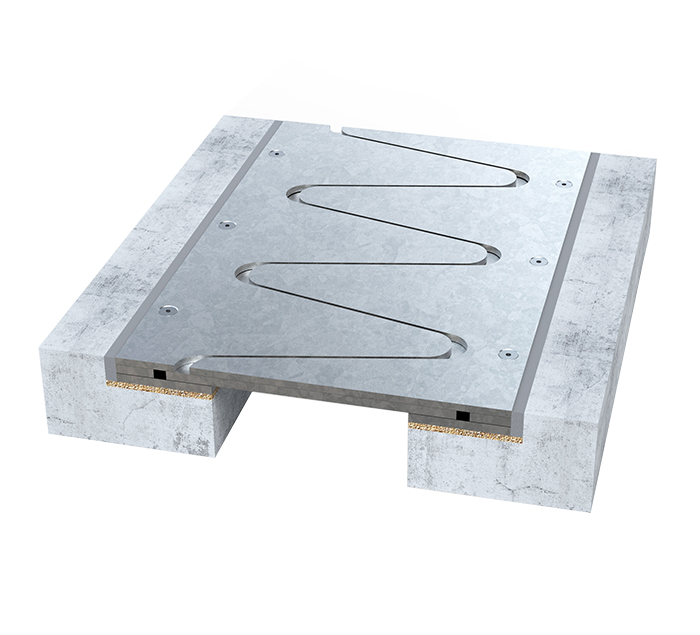

Flush Mounted Expansion Joint profile with steel reinforcement at below, galvanized steel top surface and resistant to intense forklift load. Suitable for Industrial Structures

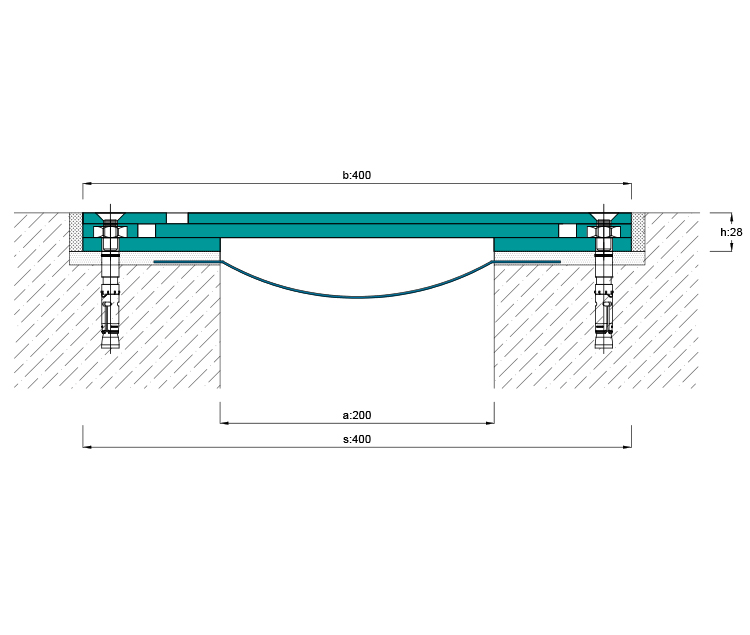

Width: 200 mm
Height-Load Capacity: 28 mm | Resistant to 60 tones vehicle load and 9 tones  forklift load.
Movement Capacity: +/-10 mm
Profile Length: 2 mt






EXAMPLE APPLICATIONS
