Floor Profiles for Under Finishing

AR 902-051

Back
Technical Specifications

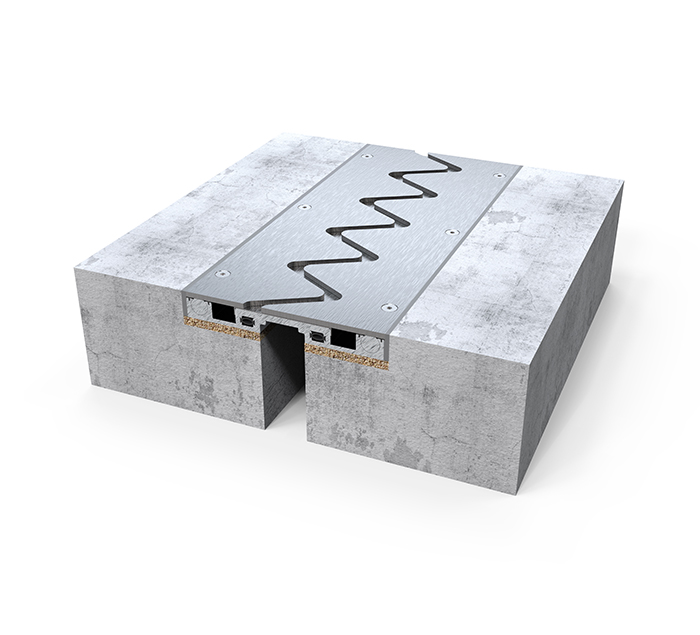

Flush Mounted Expansion Joint profile with aluminium reinforcement at below, stainless steel top surface and resistant to intense forklift load. Suitable for Industrial Structures

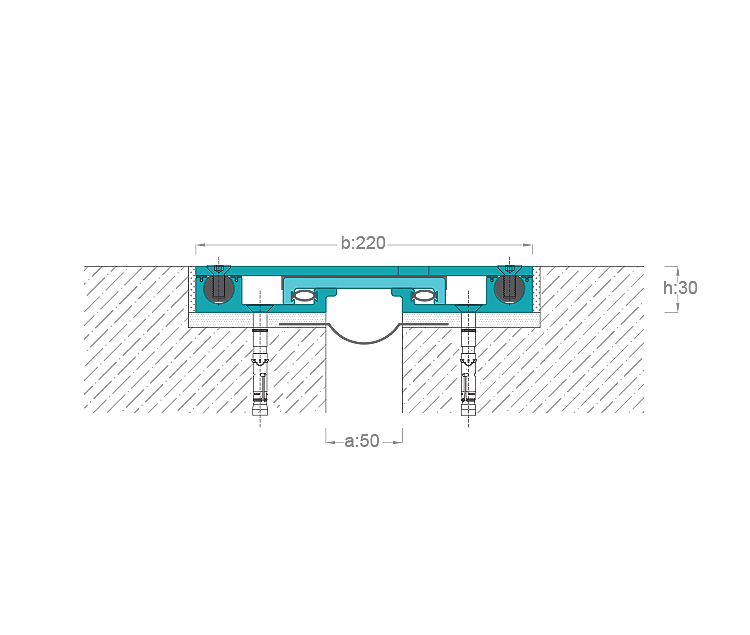

Width: 50 mm
Height-Load Capacity: 30 mm | Resistant to 60 tones vehicle and 9 tones forklift load
Movement Capacity: +/-20 mm
Profile Length: 2 mt



EXAMPLE APPLICATIONS
