Floor Profiles for Under Finishing

AR 703-050

Back
Technical Specifications

Flush Mounted Expansion Joint Profile suitable for Industrial Structures because of the resistance to forklift load, and also it has flat top surface and this flat surface makes it compatible to hygenic areas such as hospitals and shoping malls. It`s EPDM gasket allows sound-proof.

Width: 50 mm
Height-Load Capacity: 17-30-40-50-60-70 mm | Resistant to 30 tones vehicle and 6,5 tones  forklift load. (AR700-050 which has 17 mm height resistant to 3,5 tonnes vehicle load).
Movement Capacity: +/-10 mm
Profile Length: 4 lm

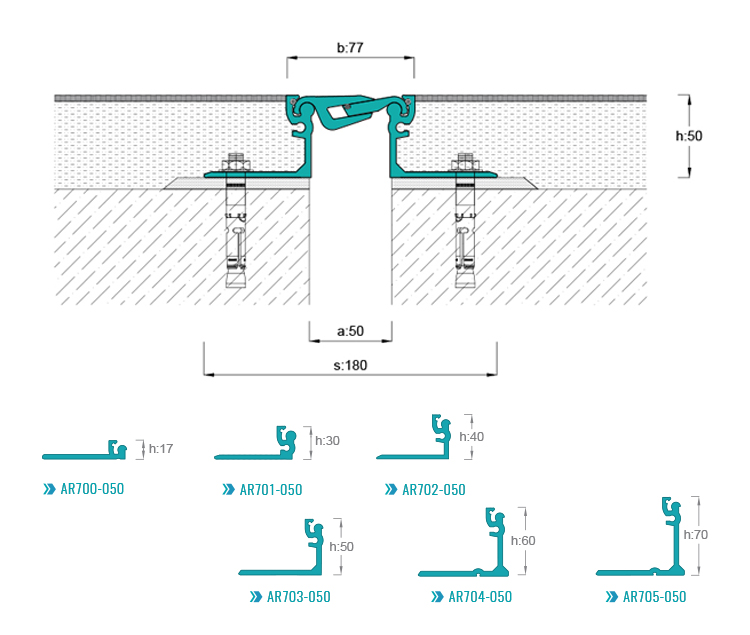

 Optional Leg Height  AR700-050 H:17 mm l AR701-050 H:30 mm l AR702-050 H:40 mm l AR704-050 H:60 mm l AR705-050 H:70 mm
EXAMPLE APPLICATIONS
