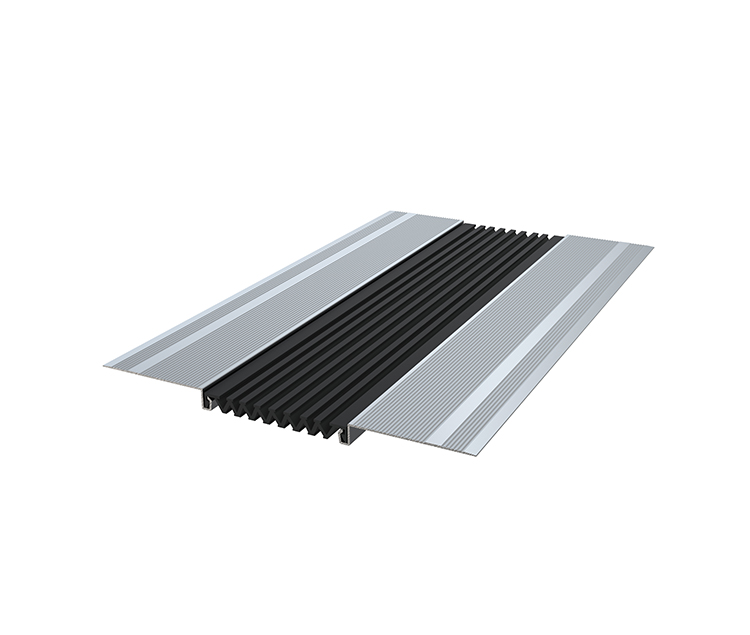

AR 255-100

Technical Specifications

Non anodised, Surface Mounted Expansion Joint Wall& Ceiling Profile

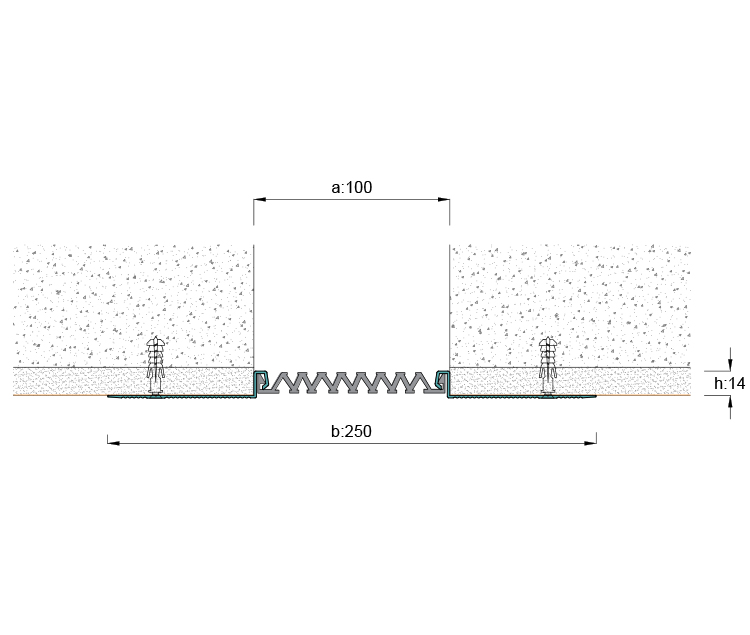

Açıklık:	100 mm
Derinlik:	14 mm \| Insert is installed by sliding.
Hareket Kapasitesi:	+/-50 mm
Profil boyu:	3 mt

EXAMPLE APPLICATIONS
