Wall and Ceiling Profiles for Over Finishing

AR 259-100

Technical Specifications

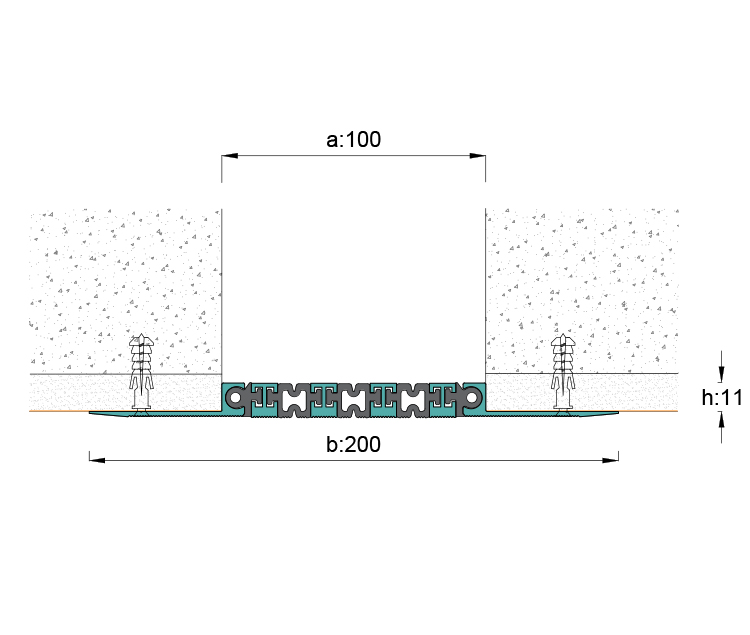

Surface Mounted Expansion Joint Wall & Ceiling Profile with screw holes. Assembled Delivery

Width:	100 mm
Depth:	11 mm \| Compatible with AR174-100 and AR303-100.
Movement Capacity:	+/-14 mm
Profile Length:	3 mt

EXAMPLE APPLICATIONS
