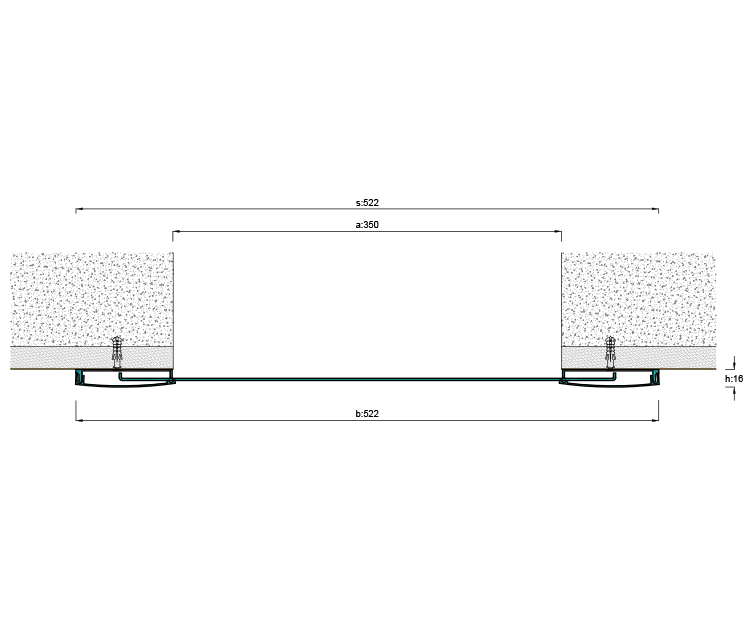

AR 291-350 (35 cm Gap)

Technical Specifications

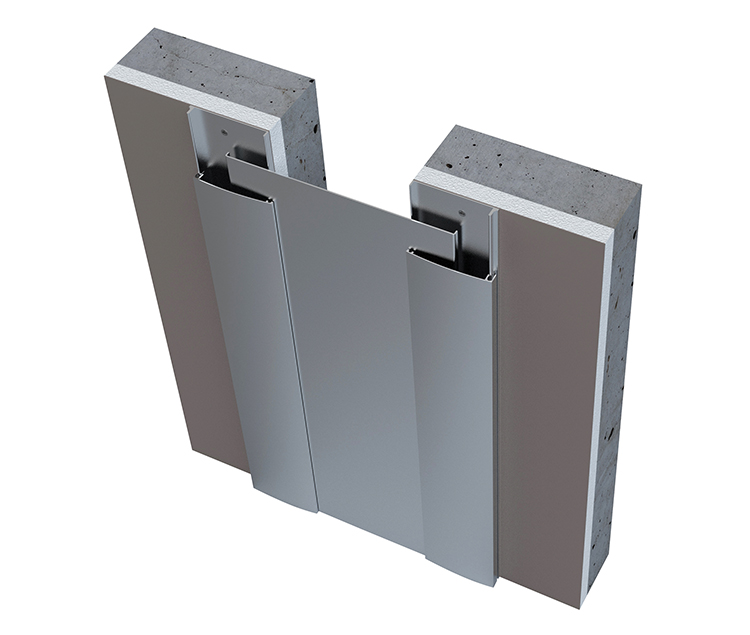

Seismic, Decorative wide and curvilinear side surfaced Wall & Ceiling Expansion Joint Profile wide and curvilinear for 35 cm gap . Steel Clips should be placed with interval of 50 cm.

Width:	350 mm
Height:	16 mm
Movement Capacity:	+/-75 mm
Profile Length:	3 mt

EXAMPLE APPLICATIONS
