AR 281-300 (30 cm Gap)

Back
Technical Specifications

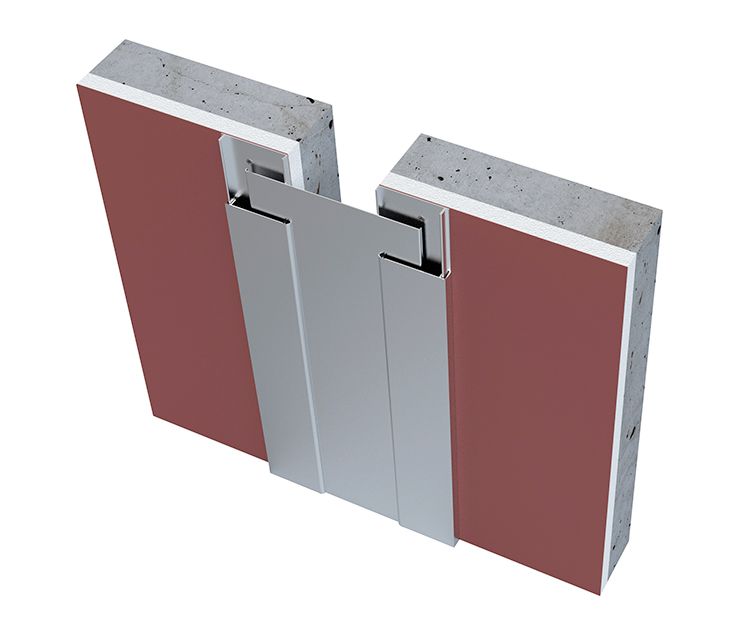

Seismic Expansion Joint Wall & Ceiling Profile. Steel Clips should be placed with interval of 50 cm.

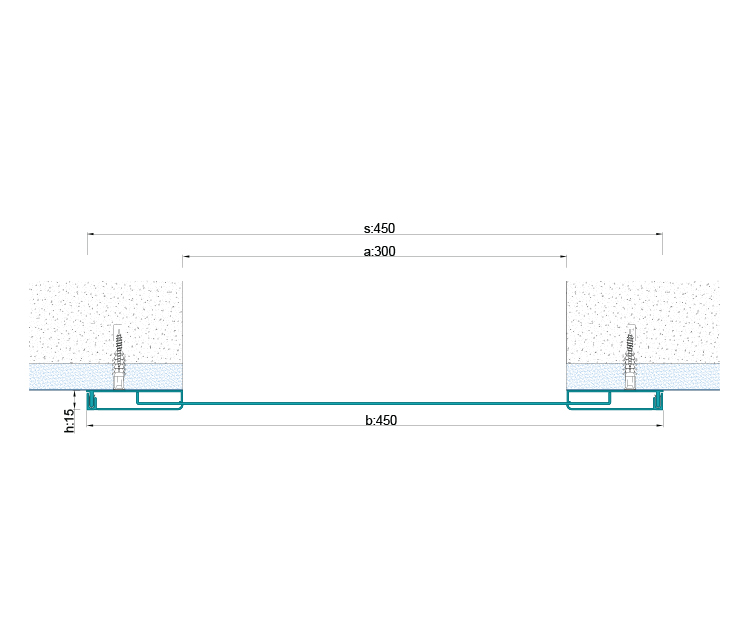

Width: 300 mm
Depth: 15 mm
Movement Capacity: +/-65 mm
Profile Length: 3 mt

EXAMPLE APPLICATIONS
