AR 971-700 (70 cm Gap)

Back
Technical Specifications

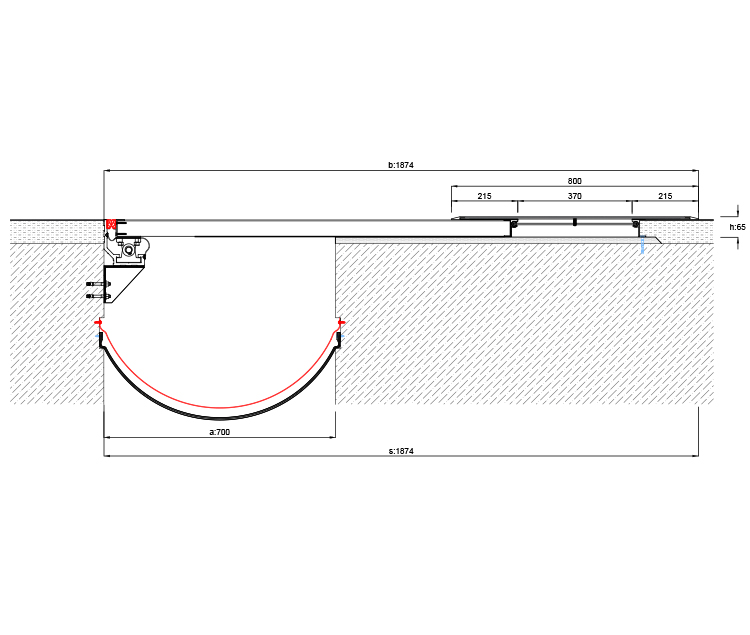

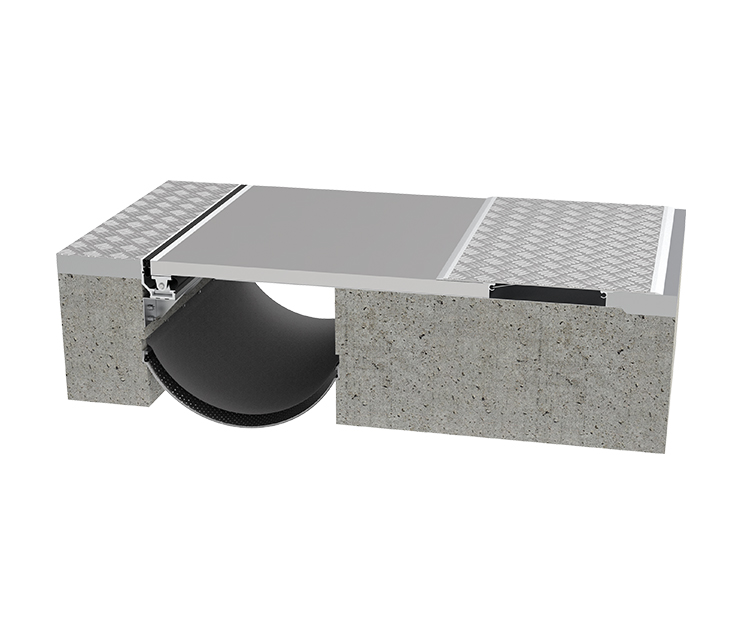

Hinged Expansion Joint Floor Profile with high load capacity for wide gaps.

Width:

700 mm
Height-Load Capacity: 65 mm | Resistant to pedestrian load.
Movement Capacity:

+/- 300 mm.

Profile Length:
2 mt
