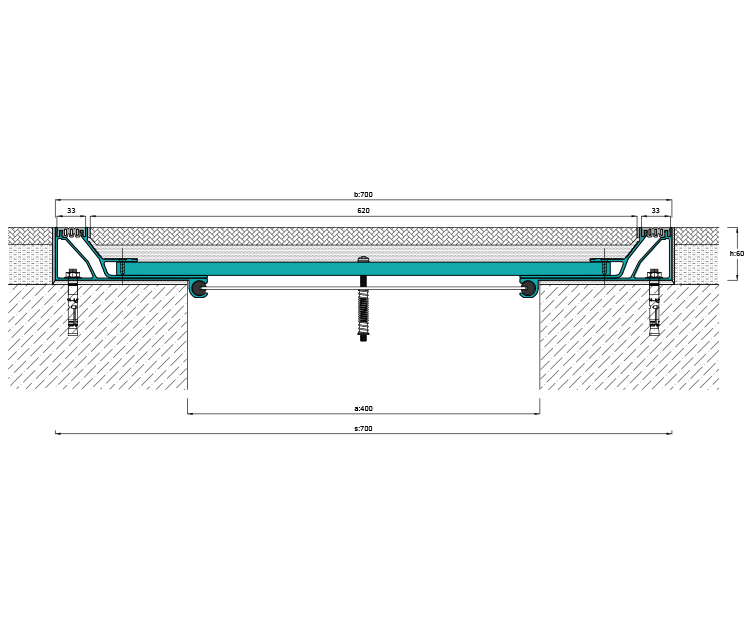

AR 802-400 (40 cm Gap)

Technical Specifications

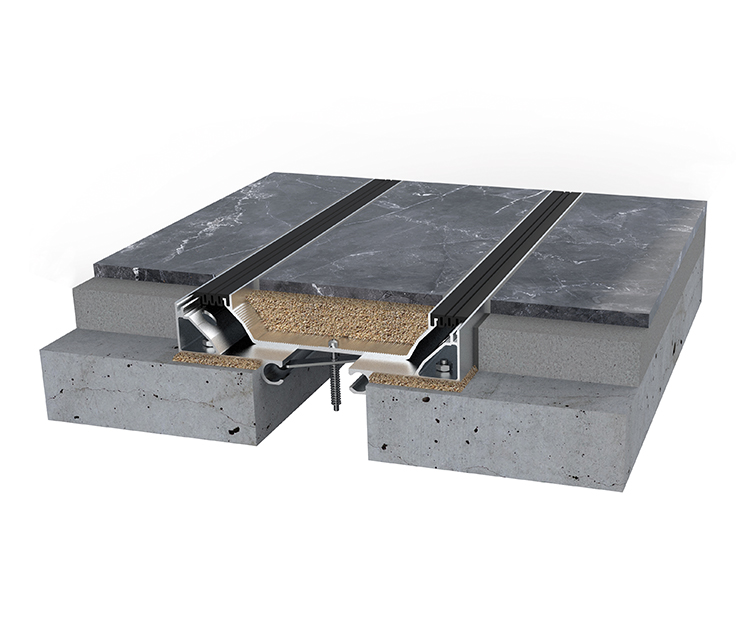

Flush Mounted Seismic Expansion Joint Floor Profile suitable for 40 cm gap and compatible to Granite, Marble and Ceramic. Water and Fire insulation materials are optional.

Width:	400 mm
Height-Load Capacity:	60 mm \| Resistant to pedestrian and cleaning machine load.
Movement Capacity:	+175/-200 mm.
Profile Length:	3 mt

EXAMPLE APPLICATIONS
