AR 902-151

Back
Technical Specifications

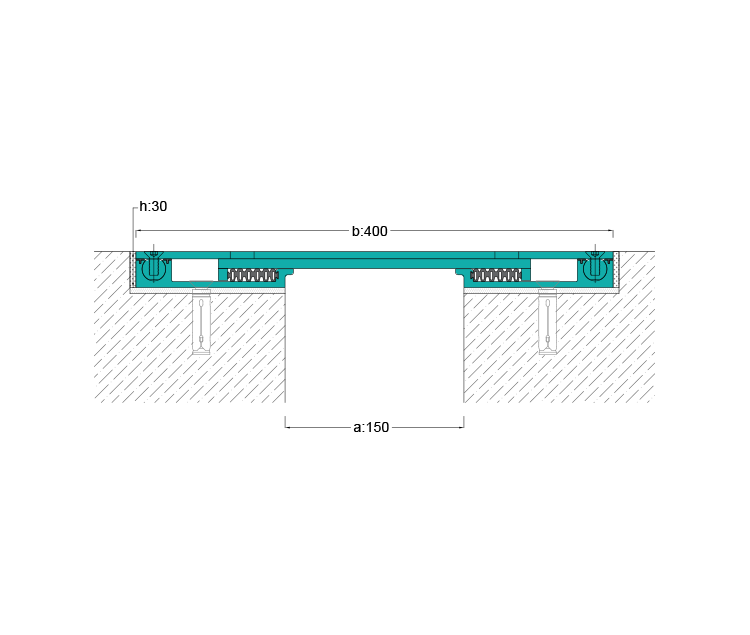

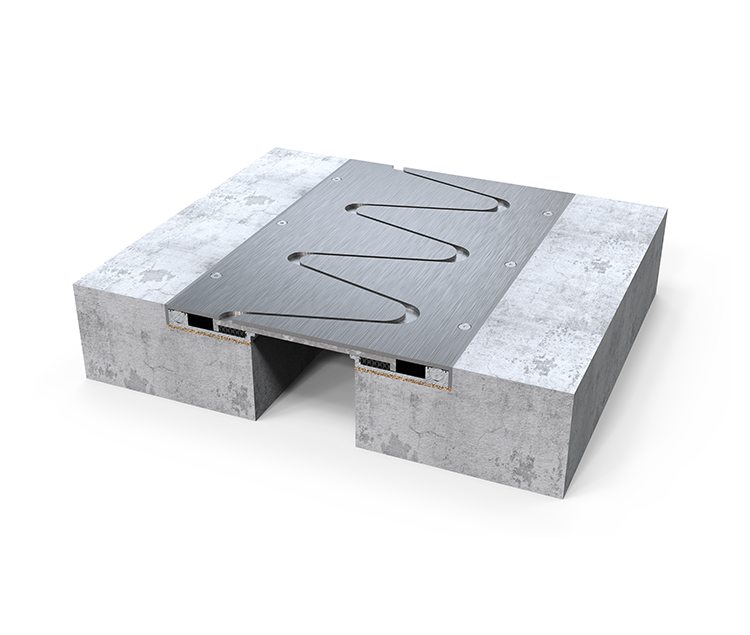

Flush Mounted Expansion Joint profile with aluminium reinforcement at below, stainless steel top surface and resistant to intense forklift load. Suitable for Industrial Structures


Width: 150 mm

Height-Load Capacity:30 mm | Resistant to 60 tones vehicle and 9 tones forklift load.

Movement Capacity:+30/-20 mm

Profile Length:2 mt
