Floor Profiles for Under Finishing

AR 901-150

Back

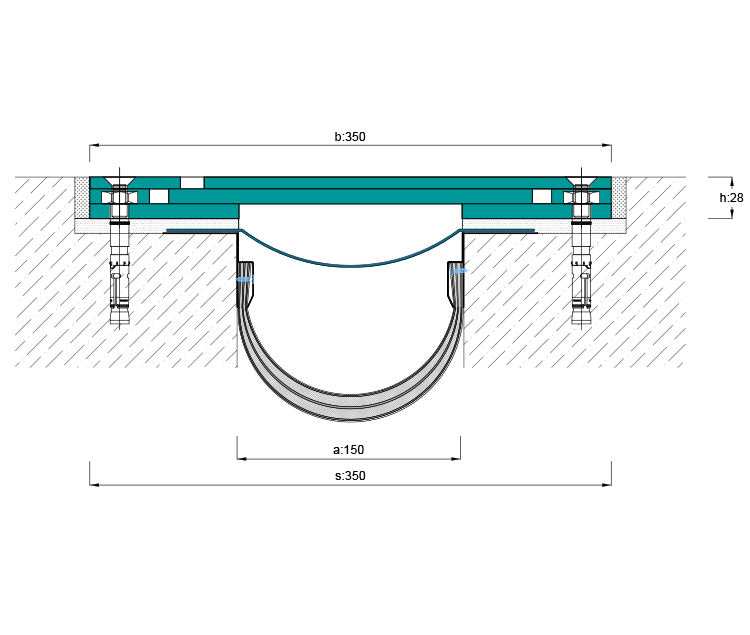

Technical Specifications

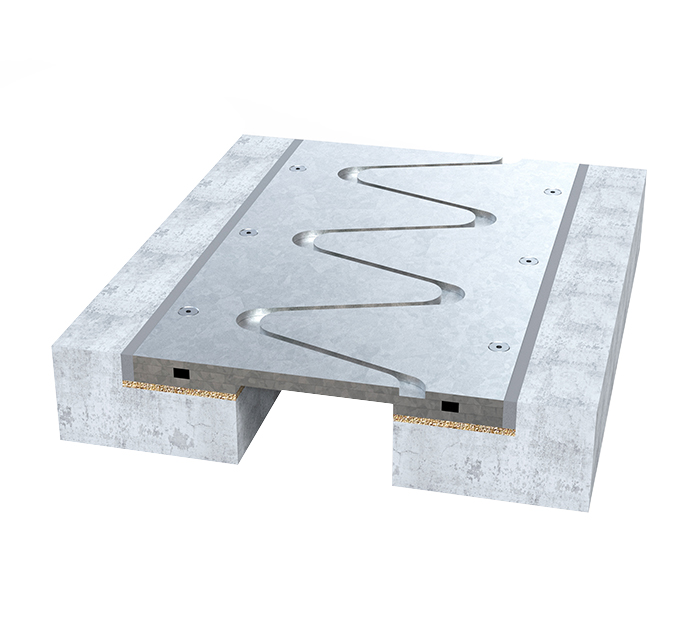

Flush Mounted Expansion Joint profile with steel reinforcement at below, galvanized steel top surface and resistant to intense forklift load. Suitable for Industrial Structures

Width: 150 mm
Height-Load Capacity: 28 mm | Resistant to 60.0 tones vehicle load and 9 tones  forklift load.
Movement Capacity: +/-10 mm
Profile Length: 2 mt

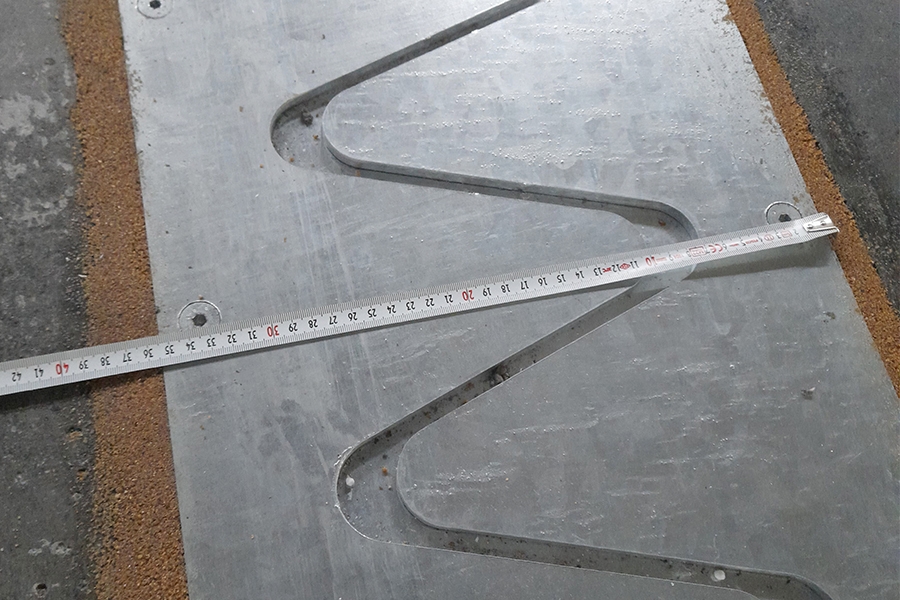

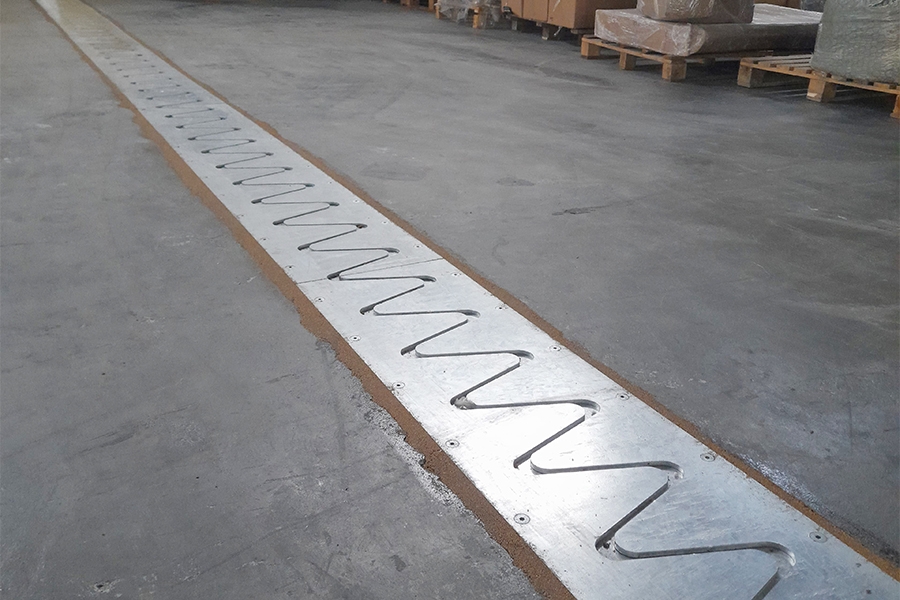

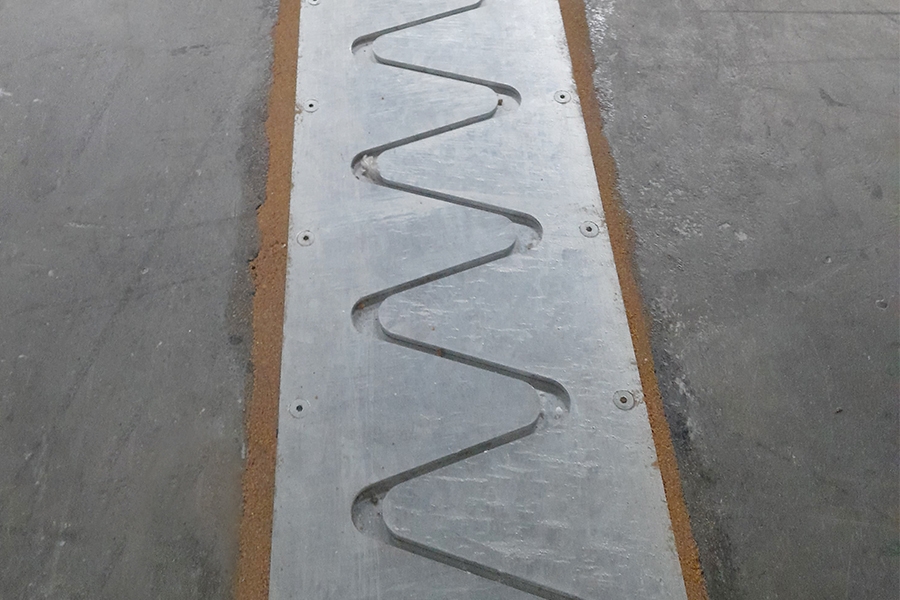

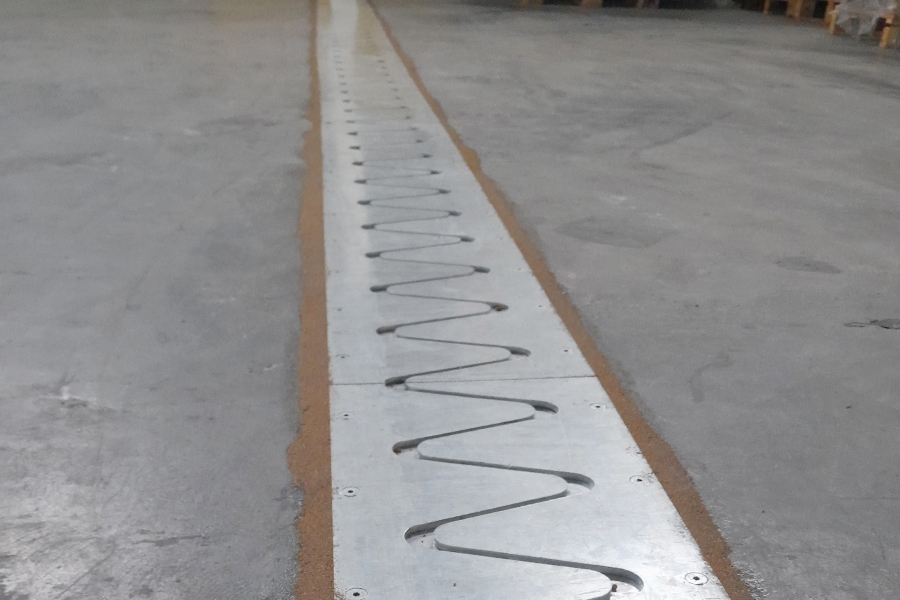

EXAMPLE APPLICATIONS
