AR 232-300 (30 cm Gap)

Back
Technical Specifications

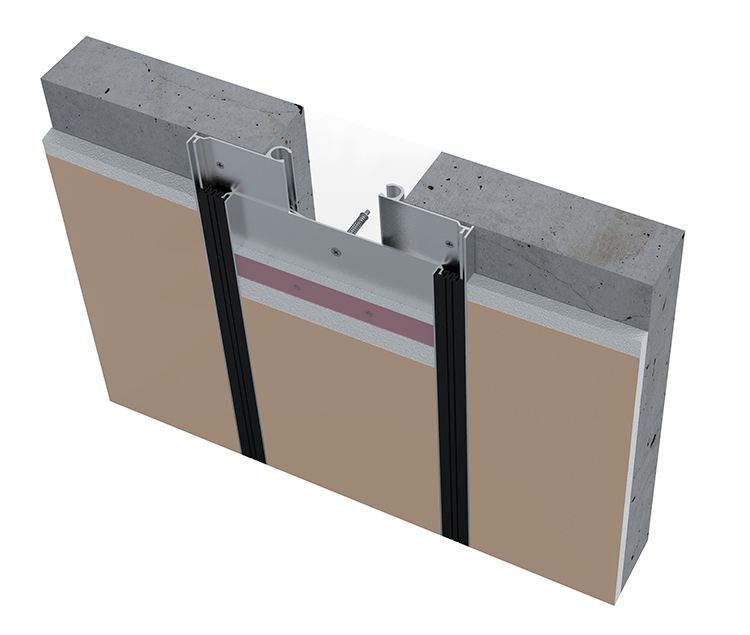

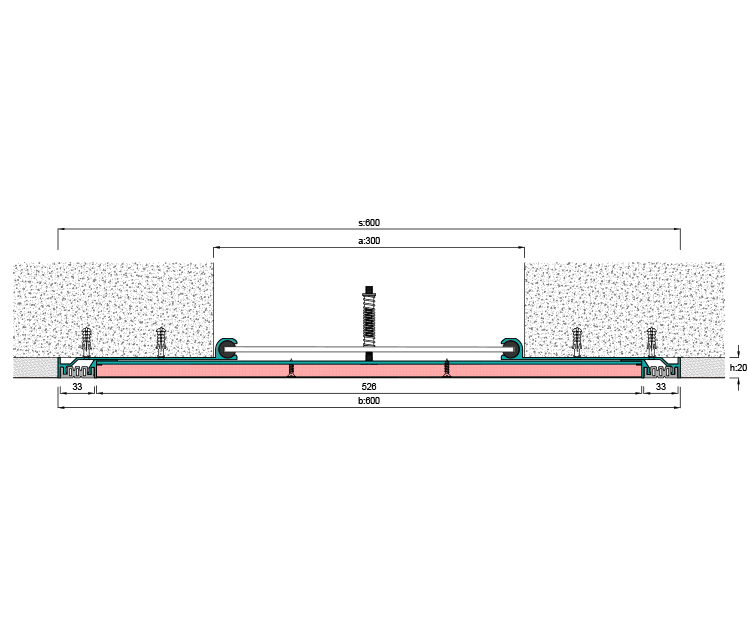

Flush Mounted Seismic Expansion Joint Wall & Ceiling Profile compatible with AR802 series and suitable for Ceramic, Plaster and Drywall.

Width: 300 mm
Height: 20 mm
Movement Capacity: +/- 150 mm
Profile Length: 3 mt

EXAMPLE APPLICATIONS
