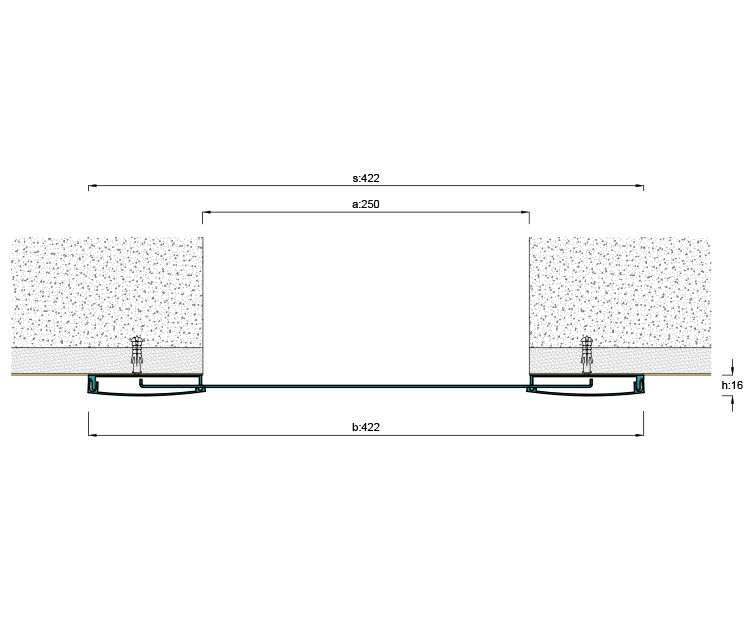

AR 291-250 (25 cm Gap)

Back
Technical Specifications
Seismic, Decorative wide and curvilinear side surfaced Wall & Ceiling Expansion Joint Profile wide and curvilinear for 25 cm gap . Steel Clips should be placed with interval of 50 cm.

Width: 250 mm
Height:
16 mm
Movement Capacity: +/-75 mm
Profile Length:
3 mt




EXAMPLE APPLICATIONS
