SJ 185-3
Technical Specifications

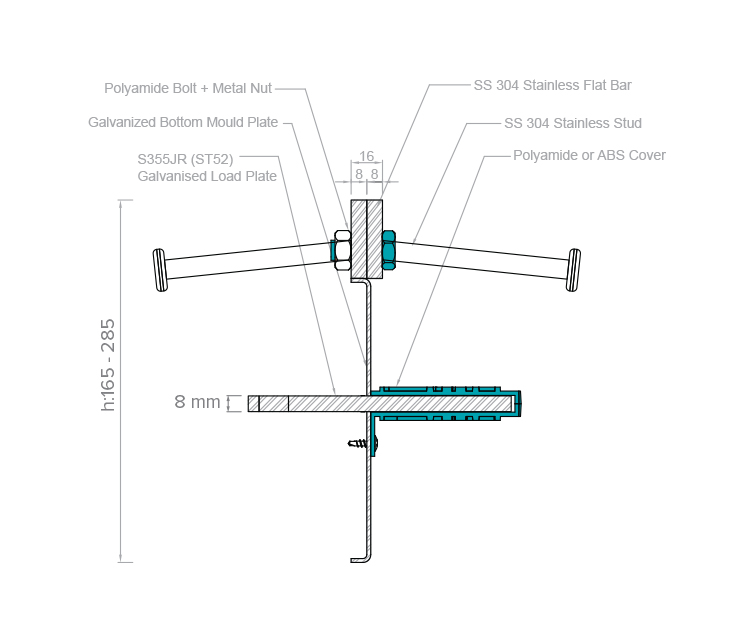

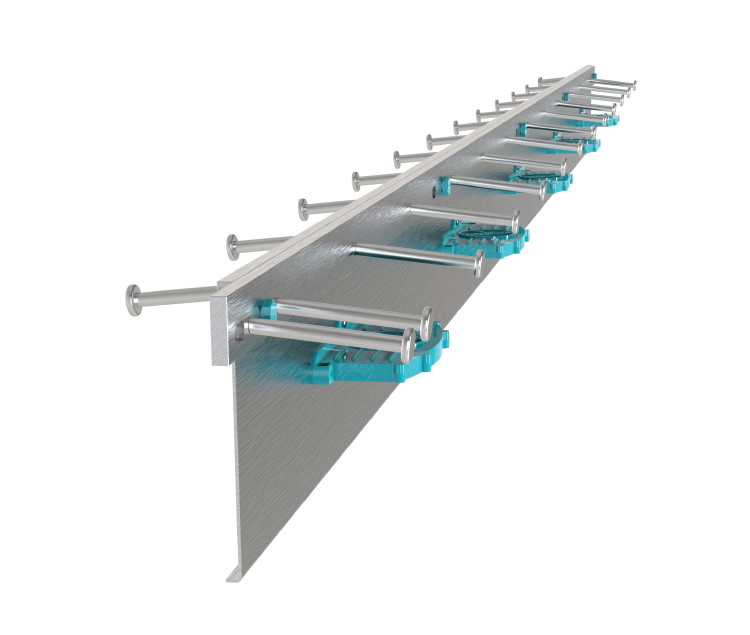

Stainless steel crack control joints, especially in industrial buildings requiring hygiene (food, pharmaceutical, chemical, etc.), are crack control joints with a completely stainless upper surface and a load plate produced by hot-dip galvanized. (The load plate is produced by galvanising because it is made of ST52.)
| Product Code | Slab Joint Lenght (mm) |
Slab Joint Height (mm) |
Recommended Depth (mm) | Load Plate Center (mm) |
| SJ 165-3 | 3000 | 165 | 165-185 | 600 |
| SJ 185-3 | 3000 | 185 | 185-235 | 600 |
| SJ 235-3 | 3000 | 235 | 235-285 | 600 |
| SJ 285-3 | 3000 | 285 | 285-335 | 600 |
