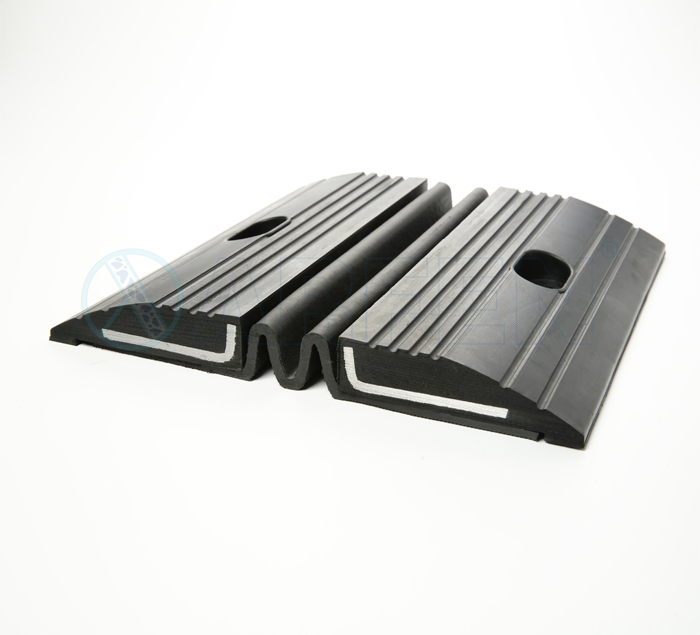

5 cm Expansion Joint Profiles For Floor

AR 921-051

Back

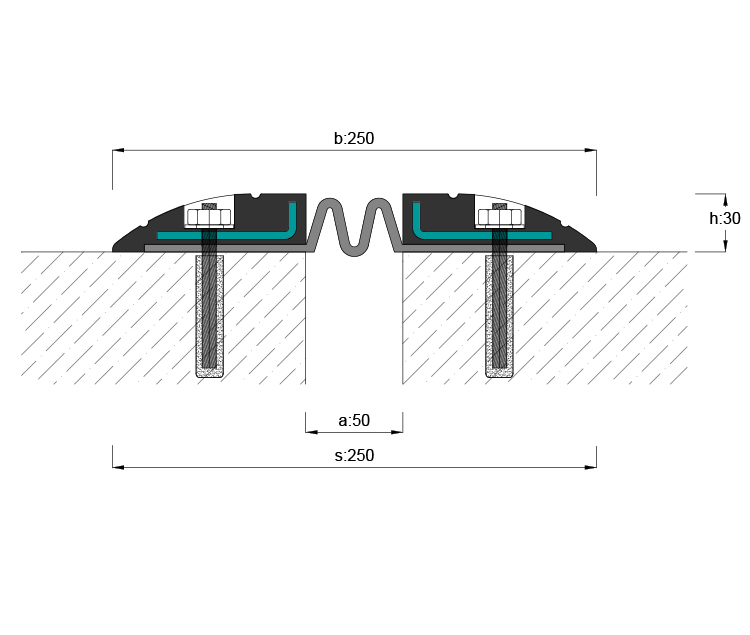

Technical Specifications

Speed Hump shaped, ST37 grade steel and rubber composite Surface Mounted Floor Expansion Joint Profile suitable for Parking Lots.

Width: 50 mm
Height-Load Capacity: 30 mm | Resistant to 9 tones vehicle load.
Movement Capacity: +/-40 mm
Profile Length: 2 mt
Insert Length: 20 mt

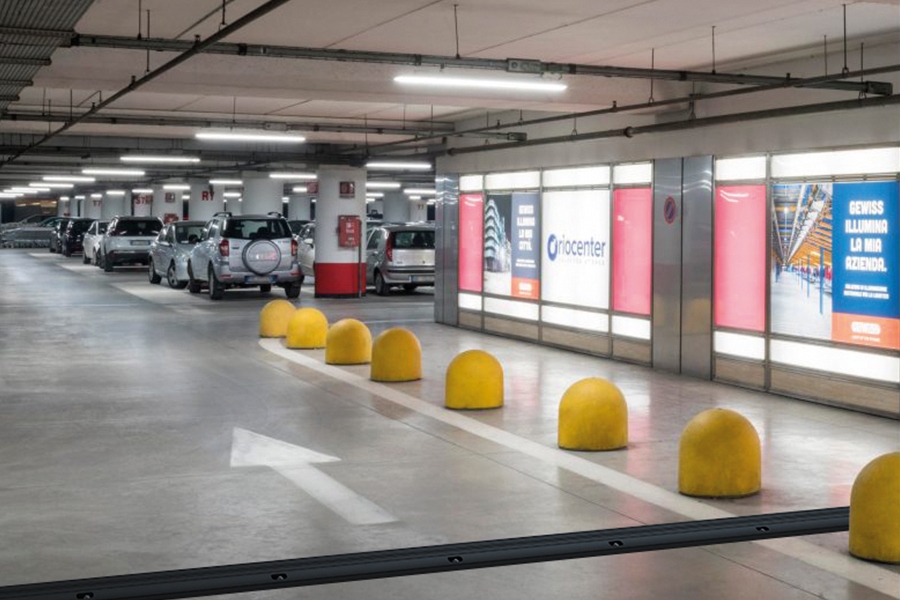

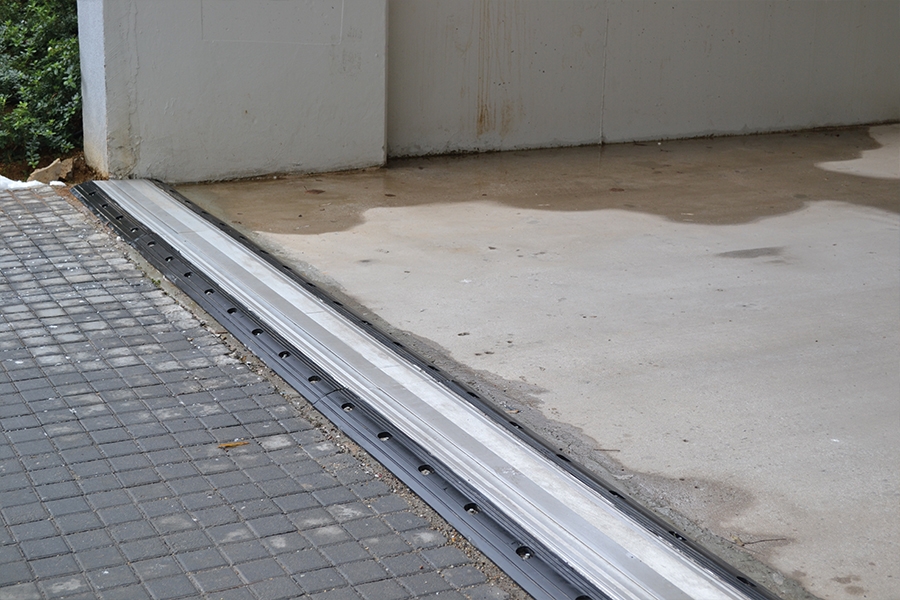

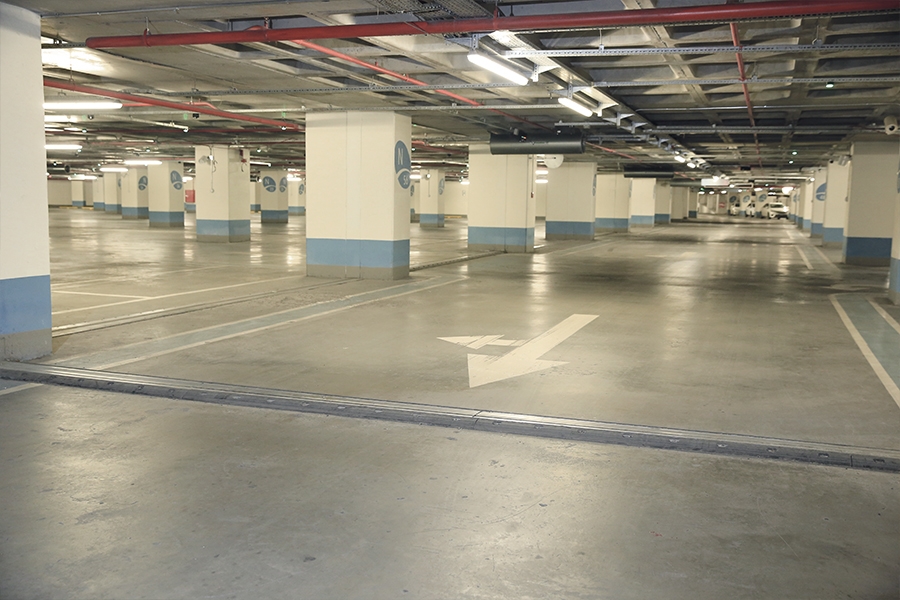

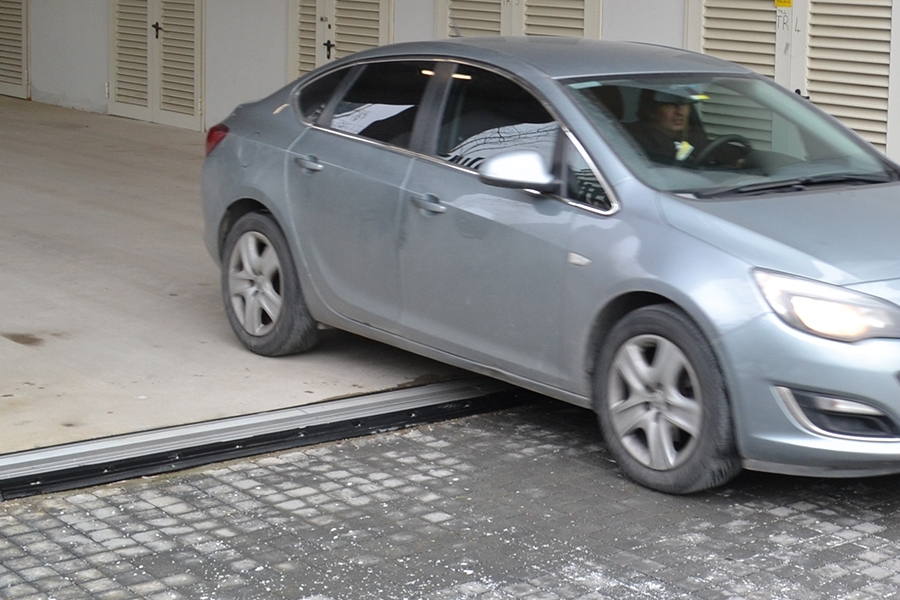

EXAMPLE APPLICATIONS
