20 cm Expansion Joint Profiles For Floor

AR 921-200 (20 cm Gap)

Technical Specifications

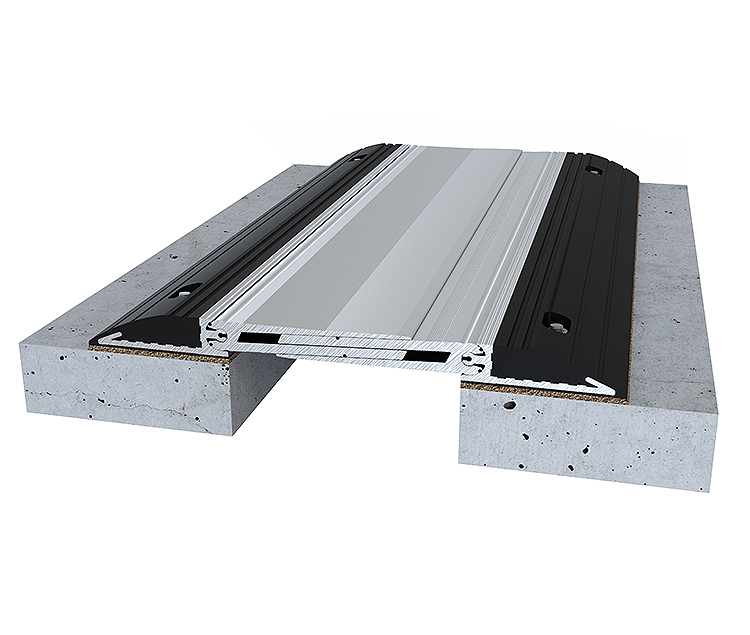

Speed Hump Shaped, Aluminium and rubber composite, Surface Mounted Floor Expansion Joint Profile suitable for Parking Lots.

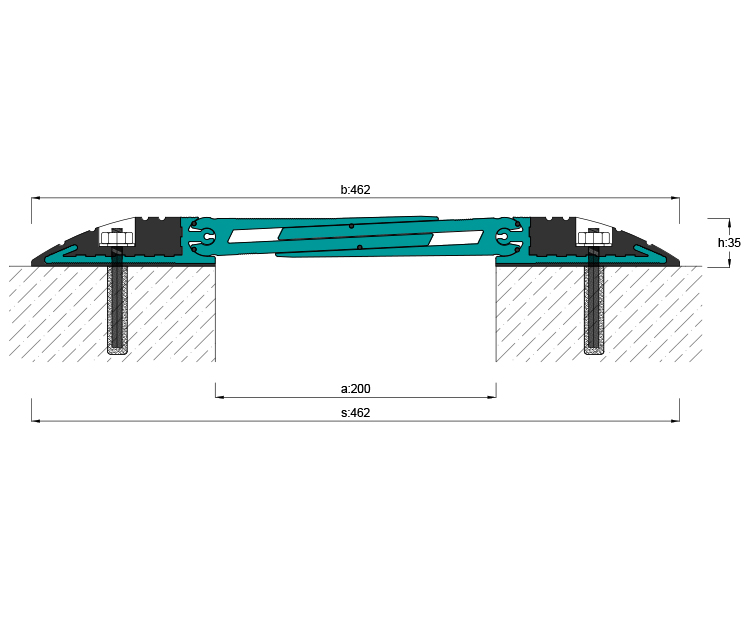

Width:	200 mm
Height-Load Capacity:	35 mm \| It is resistant to 9 tones vehicle traffic..
Movement Capacity:	+/-40 mm
Profile Length:	2 mt

EXAMPLE APPLICATIONS
