AR 910-100

Technical Specifications

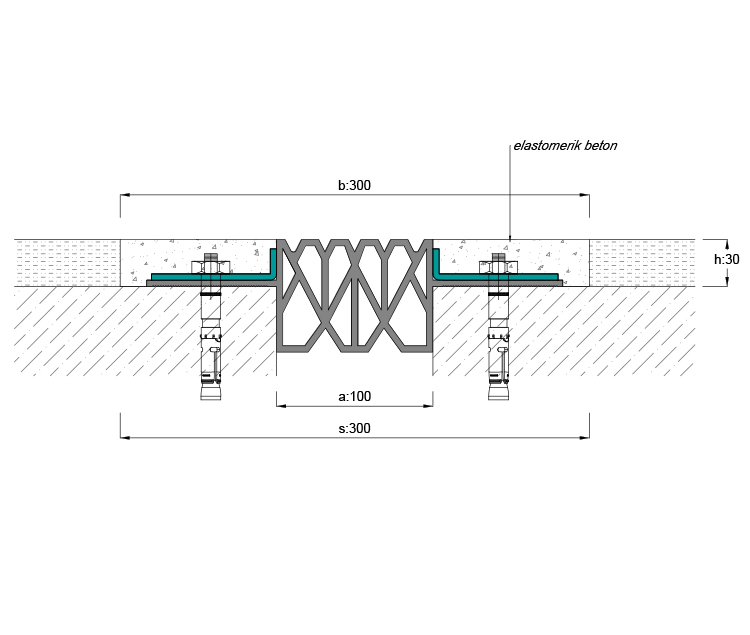

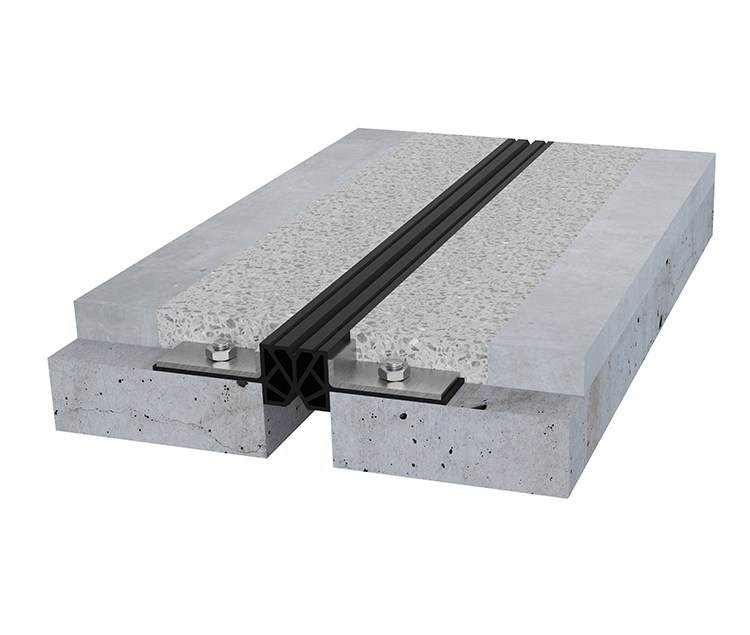

TPE based Flush Mounted Floor Expansion Joint Profile assembled with steel profiles and suitable for parking lots.

Width:	100 mm
Height-Load Capacity:	30 mm \| Resistant to 30 tones vehicle load.
Movement Capacity:	+/-50 mm
Profile Length:	2 mt
Insert Length:	8 mt

EXAMPLE APPLICATIONS
