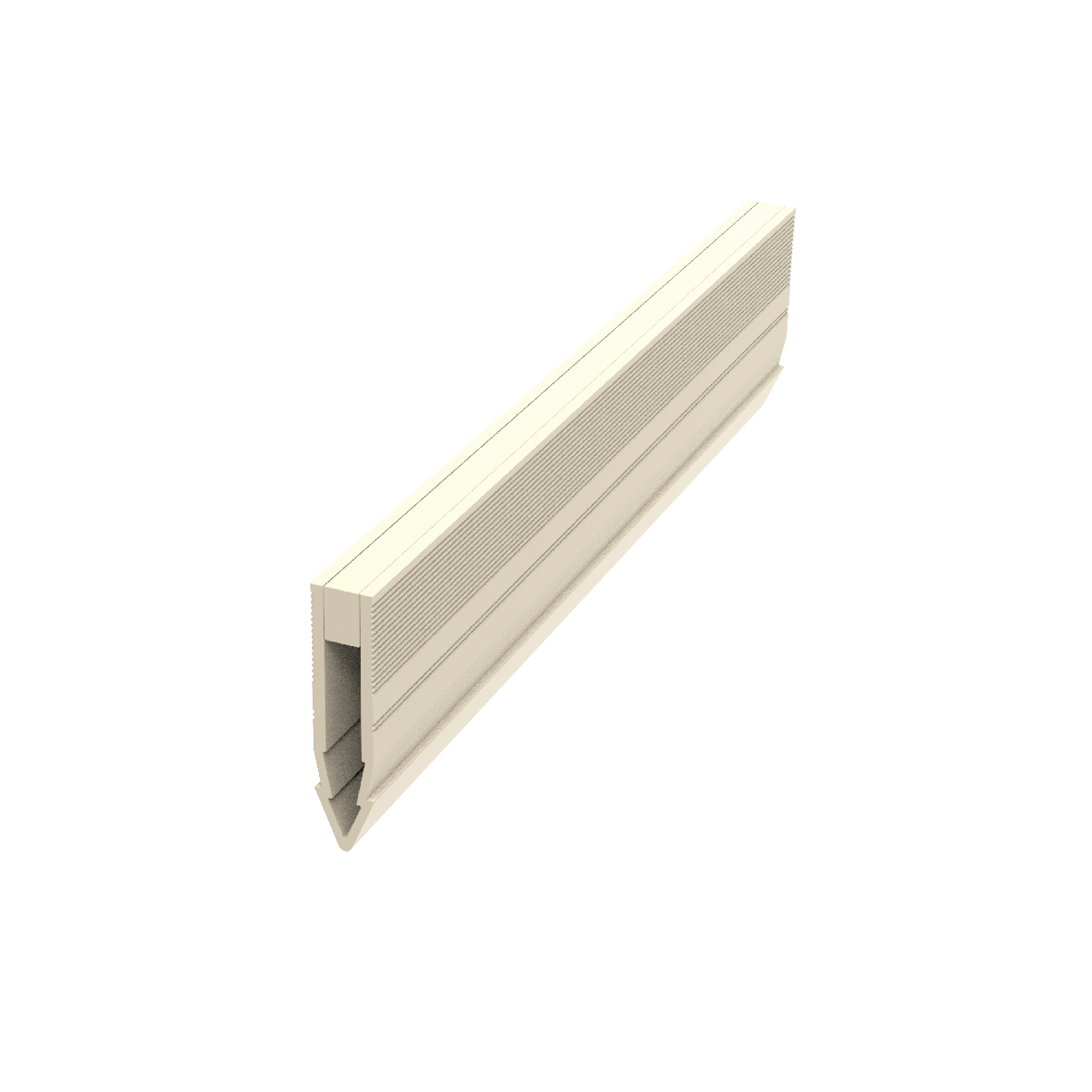

PVC Thermal Movement Joint Profiles for Interiors

DP06-1

Back
Technical Specifications

The flooring tiles would be deformed due to thermal expansion and various reasons. Movement joints are needed to absorb energy  that can be between structure and the tile because of  differing amounts of expansion. The movement joints and control joint profiles of ARFEN DP PVC  series offer functional solutions for all  tile and ceramic coverings. ARFEN DP series suitable for application with marble, ceramics, terrazzo ,  stone and other similar materials.

DP06-1 :The middle part of profiles is soft and the edges are made of hard PVC . The minimum application in the interior 4.80 mt x 4.80 mt and the maximum application area  6.00 mt x 6.00 mt. However, if the areas will exposed to moisture or sunlight the minimum of application must be   3.60 mt x 3.60 mt  , maximum application must be  4.80 mt x 4.80 mt.

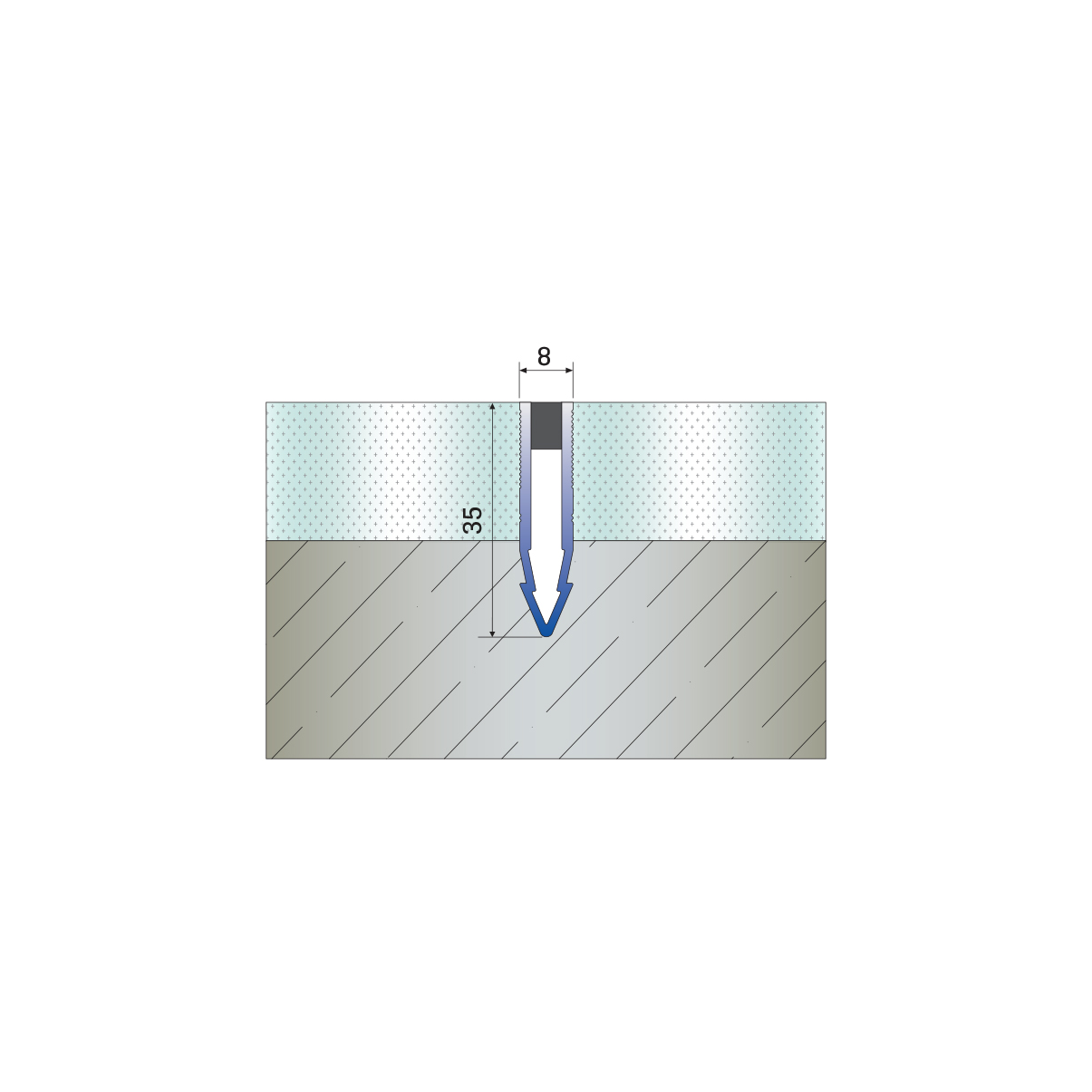

Height of Profile: 35 mm
Width: 8 mm
Profile Length: 3,00 LM
Color Alternatives: Grey and Cream
EXAMPLE APPLICATIONS
