AR 232-200

Back
Technical Specifications

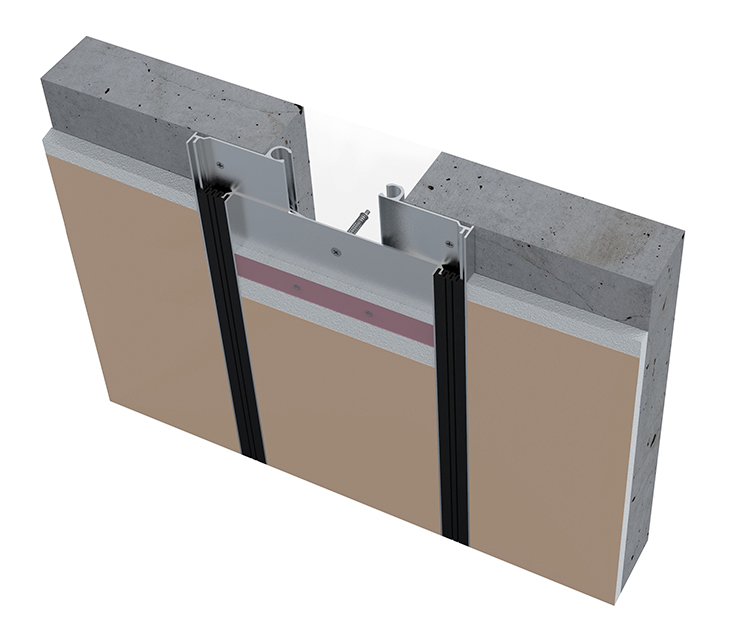

Flush Mounted Seismic Expansion Joint Wall & Ceiling Profile compatible with AR802 series and suitable for Ceramic, Plaster and Drywall.

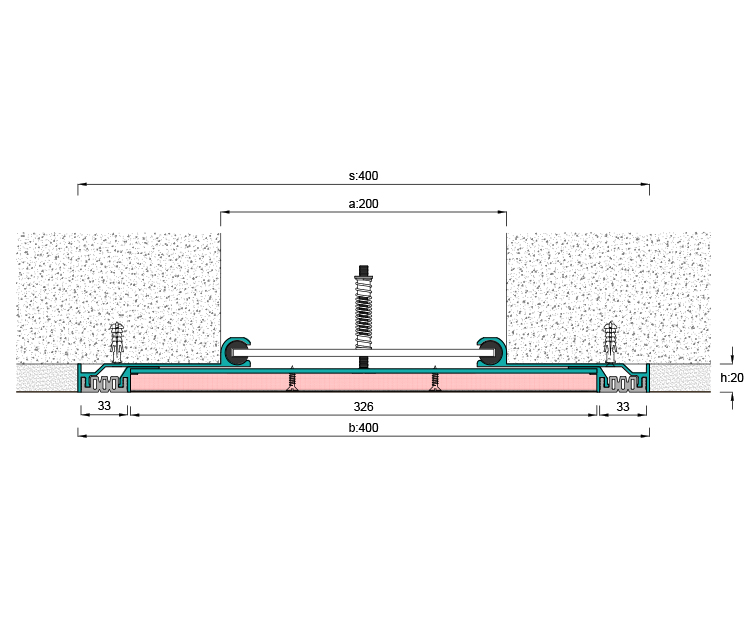

Width: 200 mm
Height: 20 mm
Movement Capacity: +100/-80 mm
Profile Length: 3 mt

EXAMPLE APPLICATIONS
