AR 931-150

Technical Specifications

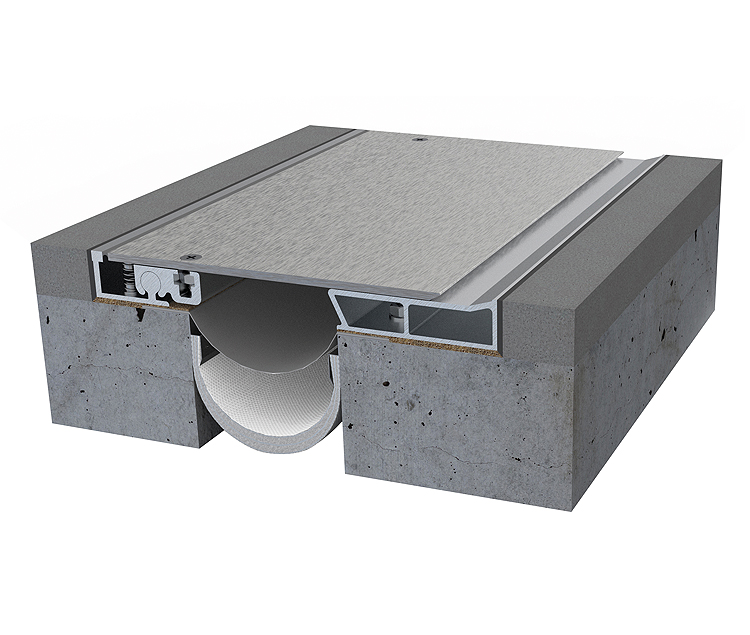

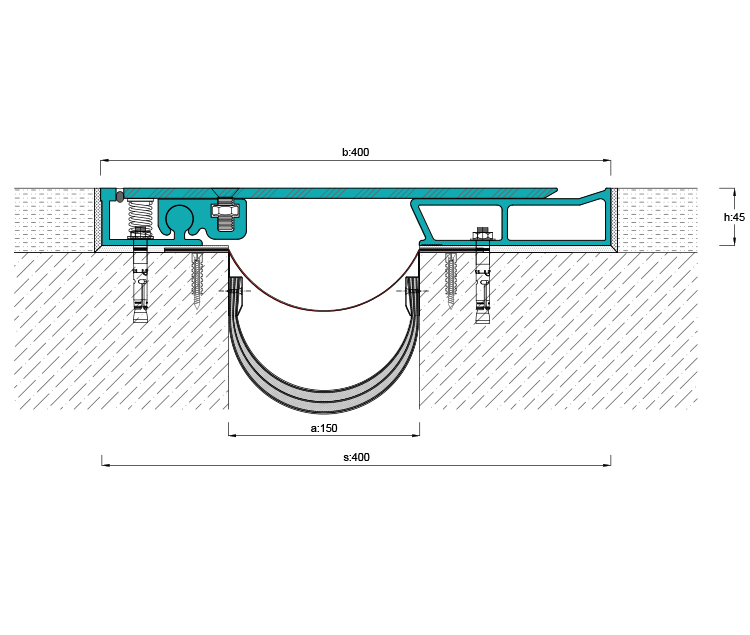

Flush Mounted Expansion Joint Profile with galvanized steel top surface and high movement capacity. One side Hinged

Width:	150 mm
Height-Load Capacity:	45 mm \| Resistant to 30 tones vehicle 6.5 tones forklift load
Movement Capacity:	+/-75 mm
Profile Length:	2 mt

EXAMPLE APPLICATIONS
