AR 243-150

Back
Technical Specifications

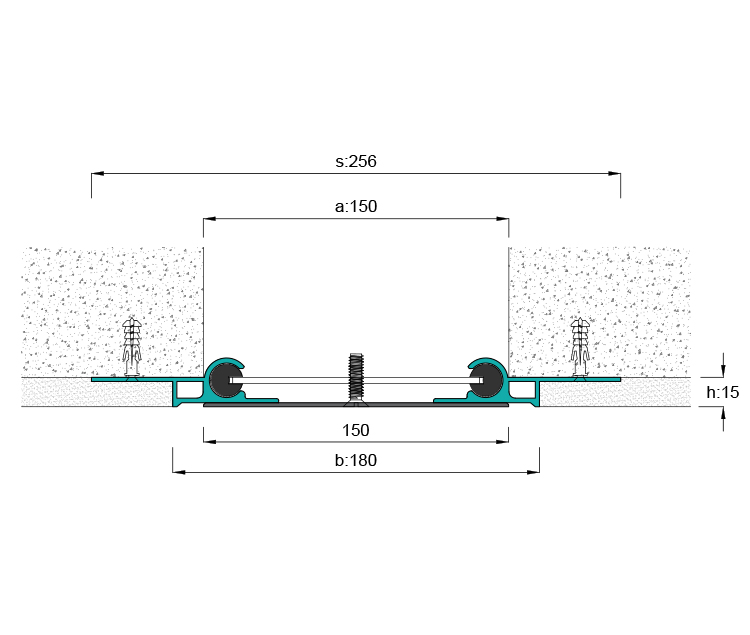

Surface Mounted Seismic Expansion Joint Wall & Ceiling Profile compatible with AR813 series and suitable for Ceramic, Plaster and Drywall. It has Stainless Steel Cover Surface.

Width: 150 mm
Height: 15 mm
Movement Capacity: +60/-75 mm
Profile Length: 3 mt

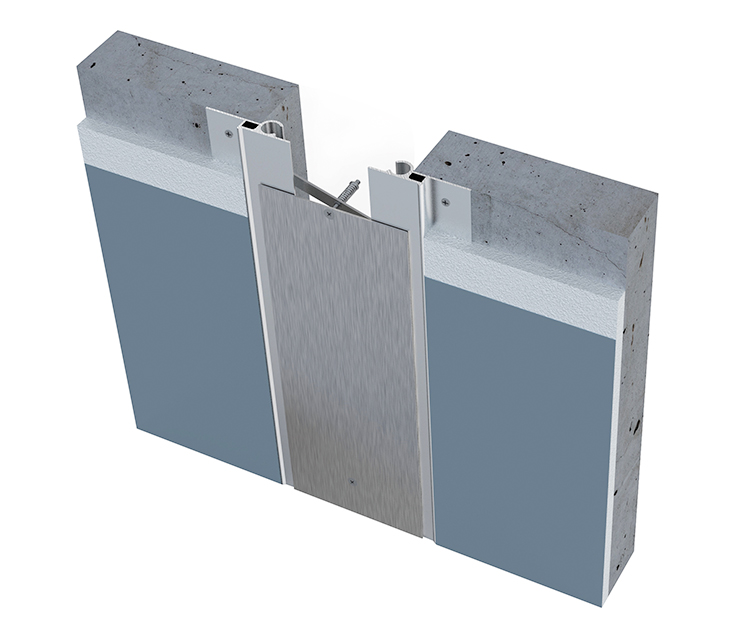

EXAMPLE APPLICATIONS
