AR 232-150

Back

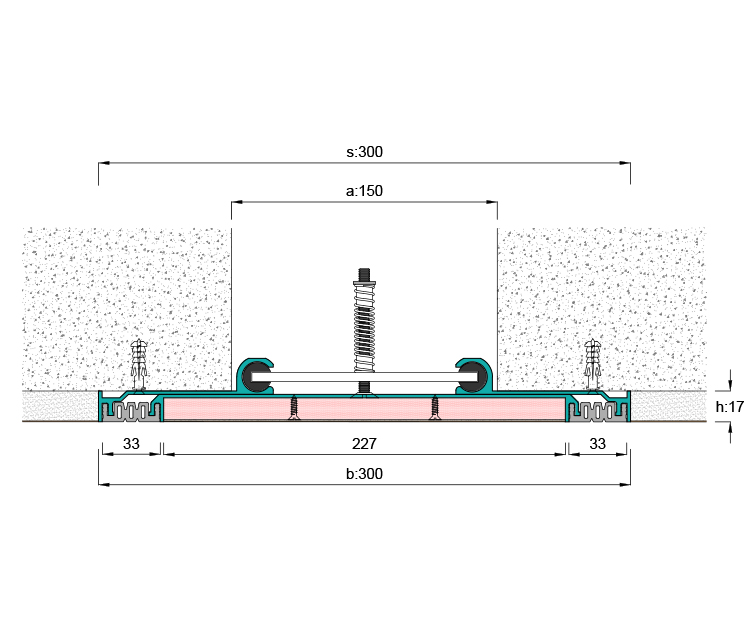

Technical Specifications

Surface Mounted Seismic Expansion Joint Wall & Ceiling Profile compatible with AR802 series and suitable for Ceramic, Plaster and Drywall.

Width: 150 mm
Height: 17 mm
Movement Capacity: +/-70 mm
Profile Length: 3 mt

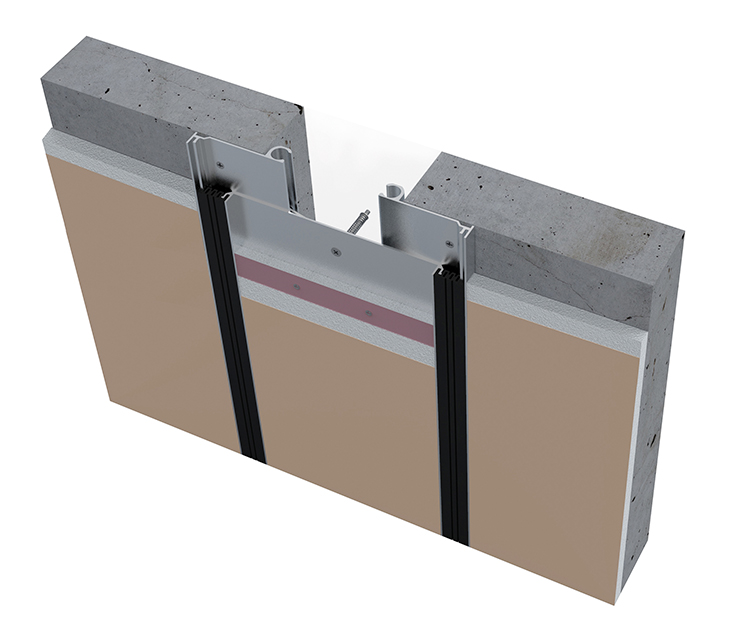

EXAMPLE APPLICATIONS
